Annex60.Fluid.HeatExchangers.ActiveBeams.Examples

Name	Description
CoolingAndHeating
CoolingOnly
HeatingOnly

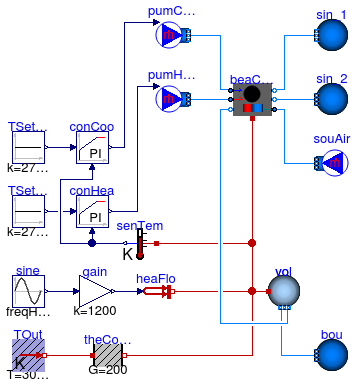

This example tests the implementation of Annex60.Fluid.HeatExchangers.ActiveBeams.CoolingAndHeating for both heating and cooling mode. An air volume is maintained at a temperature between 22ˆC and 25ˆC by two controllers that regulate the water flow rate in the active beam.

Modelica definition

model CoolingAndHeating extends Modelica.Icons.Example; package MediumA = Annex60.Media.Air "Medium model for air"; package MediumW = Annex60.Media.Water "Medium model for water"; Annex60.Fluid.Sources.FixedBoundary sin_1( redeclare package Medium = MediumW, nPorts=1) "Sink chilled water"; Annex60.Fluid.Sources.MassFlowSource_T souAir( redeclare package Medium = MediumA, m_flow=0.0792, use_m_flow_in=false, nPorts=1, T=285.85) "Source air"; Annex60.Fluid.Sources.FixedBoundary bou( redeclare package Medium = MediumA, nPorts=1) "Sink air"; Modelica.Thermal.HeatTransfer.Components.ThermalConductor theConWal(G=200) "Thermal conductor for wall"; Modelica.Thermal.HeatTransfer.Sources.PrescribedHeatFlow heaFlo "Thermal loads"; Modelica.Blocks.Sources.Constant TSetHea(k=273.15 + 22) "Heating set-point temperature"; Modelica.Thermal.HeatTransfer.Sources.FixedTemperature TOut(T=301.15) "Outdoor air temperature"; Annex60.Controls.Continuous.LimPID conHea( yMax=0.094, Td=0, reverseAction=false, Ti=100, k=0.1, controllerType=Modelica.Blocks.Types.SimpleController.PI) "Controller for heating"; Sources.MassFlowSource_T pumCoo( redeclare package Medium = MediumW, use_m_flow_in=true, nPorts=1, T=288.15) "Source chilled water"; Modelica.Blocks.Math.Gain gain(k=1200) "Gain for thermal loads"; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor senTem "Room air temperature sensor"; Sources.MassFlowSource_T pumHea( redeclare package Medium = MediumW, use_m_flow_in=true, nPorts=1, T=320.95) "Source hot water"; Annex60.Fluid.Sources.FixedBoundary sin_2( redeclare package Medium = MediumW, nPorts=1) "Sink hot water"; Modelica.Blocks.Sources.Sine sine( freqHz=1/86400, amplitude=1, phase=-1.5707963267949) "Source for thermal loads"; Annex60.Fluid.MixingVolumes.MixingVolume vol(nPorts=2, redeclare package Medium = MediumA, m_flow_nominal=0.1, V=30, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial) "Air volume for room"; Modelica.Blocks.Sources.Constant TSetCoo(k=273.15 + 25) "Cooling set-point temperature"; Annex60.Controls.Continuous.LimPID conCoo( yMax=0.094, reverseAction=true, Td=0, k=0.5, Ti=70, controllerType=Modelica.Blocks.Types.SimpleController.PI) "Controller for cooling"; Annex60.Fluid.HeatExchangers.ActiveBeams.CoolingAndHeating beaCooHea( redeclare package MediumWat = MediumW, redeclare package MediumAir = MediumA, redeclare Annex60.Fluid.HeatExchangers.ActiveBeams.Data.Trox.DID632A_nozzleH_length6ft_cooling perCoo, redeclare Annex60.Fluid.HeatExchangers.ActiveBeams.Data.Trox.DID632A_nozzleH_length6ft_heating perHea, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyStateInitial) "Active Beam"; equation connect(TOut.port, theConWal.port_a); connect(gain.y, heaFlo.Q_flow); connect(senTem.T,conHea. u_m); connect(sine.y, gain.u); connect(bou.ports[1], vol.ports[1]); connect(theConWal.port_b, vol.heatPort); connect(heaFlo.port, vol.heatPort); connect(senTem.port, vol.heatPort); connect(TSetHea.y, conHea.u_s); connect(TSetCoo.y, conCoo.u_s); connect(conCoo.u_m, senTem.T); connect(beaCooHea.watCoo_b, sin_1.ports[1]); connect(sin_2.ports[1], beaCooHea.watHea_b); connect(souAir.ports[1], beaCooHea.air_a); connect(beaCooHea.air_b, vol.ports[2]); connect(beaCooHea.heaPor, vol.heatPort); connect(conCoo.y, pumCoo.m_flow_in); connect(conHea.y, pumHea.m_flow_in); connect(pumCoo.ports[1], beaCooHea.watCoo_a); connect(pumHea.ports[1], beaCooHea.watHea_a); end CoolingAndHeating;

Annex60.Fluid.HeatExchangers.ActiveBeams.Examples.CoolingOnly

Information

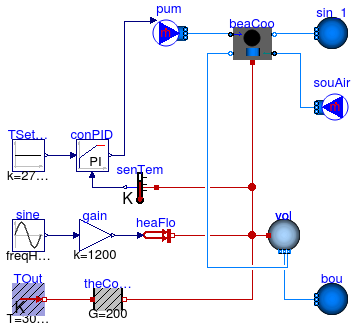

This example tests the implementation of Annex60.Fluid.HeatExchangers.ActiveBeams.Cooling. An air volume is maintained at a temperature below 25ˆC by a controller that regulates the water flow rate in the active beam.

Modelica definition

model CoolingOnly extends Modelica.Icons.Example; package MediumA = Annex60.Media.Air "Medium model for air"; package MediumW = Annex60.Media.Water "Medium model for water"; Annex60.Fluid.Sources.FixedBoundary sin_1( redeclare package Medium = MediumW, nPorts=1) "Sink for water"; Annex60.Fluid.Sources.MassFlowSource_T souAir( redeclare package Medium = MediumA, use_m_flow_in=false, m_flow=0.0792, nPorts=1, T=285.85) "Source for air"; Annex60.Fluid.Sources.FixedBoundary bou( redeclare package Medium = MediumA, nPorts=1) "Sink for air"; Modelica.Thermal.HeatTransfer.Components.ThermalConductor theConWal(G=200) "Thermal conductor for wall"; Modelica.Thermal.HeatTransfer.Sources.PrescribedHeatFlow heaFlo "Thermal loads"; Modelica.Blocks.Sources.Constant TSetCoo(k=273.15 + 25) "Set-point temperature"; Modelica.Thermal.HeatTransfer.Sources.FixedTemperature TOut(T=301.15) "Outdoor air temperature"; Annex60.Controls.Continuous.LimPID conPID( reverseAction=true, Td=0, k=0.5, Ti=70, controllerType=Modelica.Blocks.Types.SimpleController.PI, yMax=0.094) "Controller"; Sources.MassFlowSource_T pum( redeclare package Medium = MediumW, use_m_flow_in=true, nPorts=1, T=288.15) "Source for water"; Modelica.Blocks.Math.Gain gain(k=1200) "Gain thermal loads"; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor senTem "Room air temperature sensor"; Modelica.Blocks.Sources.Sine sine( freqHz=1/86400, amplitude=1, phase=-1.5707963267949) "Source for thermal loads"; Annex60.Fluid.MixingVolumes.MixingVolume vol( nPorts=2, redeclare package Medium = MediumA, m_flow_nominal=0.1, V=30, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, T_start=293.15) "Air volume for room"; Annex60.Fluid.HeatExchangers.ActiveBeams.Cooling beaCoo( redeclare package MediumWat = MediumW, redeclare package MediumAir = MediumA, redeclare Annex60.Fluid.HeatExchangers.ActiveBeams.Data.Trox.DID632A_nozzleH_length6ft_cooling perCoo, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial) "Active beam"; equation connect(TOut.port, theConWal.port_a); connect(gain.y, heaFlo.Q_flow); connect(TSetCoo.y, conPID.u_s); connect(senTem.T, conPID.u_m); connect(vol.ports[1], bou.ports[1]); connect(heaFlo.port, vol.heatPort); connect(theConWal.port_b, vol.heatPort); connect(senTem.port, vol.heatPort); connect(sine.y, gain.u); connect(beaCoo.watCoo_b, sin_1.ports[1]); connect(beaCoo.heaPor, vol.heatPort); connect(souAir.ports[1], beaCoo.air_a); connect(beaCoo.air_b, vol.ports[2]); connect(pum.ports[1], beaCoo.watCoo_a); connect(pum.m_flow_in, conPID.y); end CoolingOnly;

Annex60.Fluid.HeatExchangers.ActiveBeams.Examples.HeatingOnly

Information

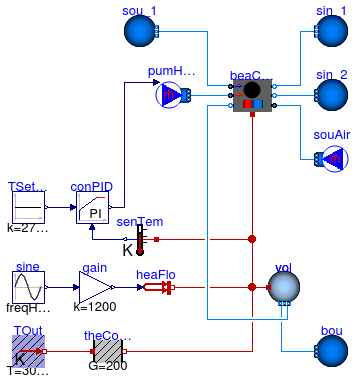

This example tests the implementation of Annex60.Fluid.HeatExchangers.ActiveBeams.CoolingAndHeating, but operates it only in heating mode. An air volume is maintained at a temperature above 22ˆC by a controller that regulates the water flow rate in the active beam.

Modelica definition

model HeatingOnly extends Modelica.Icons.Example; package MediumA = Annex60.Media.Air "Medium model for air"; package MediumW = Annex60.Media.Water "Medium model for water"; Annex60.Fluid.Sources.FixedBoundary sin_1( redeclare package Medium = MediumW, nPorts=1) "Sink for chilled water"; Annex60.Fluid.Sources.MassFlowSource_T souAir( redeclare package Medium = MediumA, m_flow=0.0792, use_m_flow_in=false, nPorts=1, T=285.85) "Source for air"; Annex60.Fluid.Sources.FixedBoundary bou( redeclare package Medium = MediumA, nPorts=1) "Sink for air"; Modelica.Thermal.HeatTransfer.Components.ThermalConductor theConWal(G=200) "Thermal conductor for wall"; Modelica.Thermal.HeatTransfer.Sources.PrescribedHeatFlow heaFlo "Thermal loads"; Modelica.Blocks.Sources.Constant TSetHea(k=273.15 + 22) "Heating set-point temperature"; Modelica.Thermal.HeatTransfer.Sources.FixedTemperature TOut(T=301.15) "Outdoor air temperature"; Annex60.Controls.Continuous.LimPID conPID( yMax=0.094, Td=0, reverseAction=false, Ti=100, k=0.1, controllerType=Modelica.Blocks.Types.SimpleController.PI) "Controller"; Annex60.Fluid.Sources.FixedBoundary sou_1( redeclare package Medium = MediumW, T=288.15, nPorts=1) "Soure chilled water"; Modelica.Blocks.Math.Gain gain(k=1200); Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor senTem "Room air temperature sensor"; Sources.MassFlowSource_T pumHea( redeclare package Medium = MediumW, use_m_flow_in=true, nPorts=1, T=320.95) "Source for heating"; Annex60.Fluid.Sources.FixedBoundary sin_2( redeclare package Medium = MediumW, nPorts=1) "Sink for hot water"; Modelica.Blocks.Sources.Sine sine( freqHz=1/86400, amplitude=1, phase=-1.5707963267949) "Source for thermal loads"; Annex60.Fluid.MixingVolumes.MixingVolume vol(nPorts=2, redeclare package Medium = MediumA, m_flow_nominal=0.1, V=30, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, T_start=293.15) "Air volume for room"; Annex60.Fluid.HeatExchangers.ActiveBeams.CoolingAndHeating beaCooHea( redeclare package MediumWat = MediumW, redeclare package MediumAir = MediumA, redeclare Annex60.Fluid.HeatExchangers.ActiveBeams.Data.Trox.DID632A_nozzleH_length6ft_cooling perCoo, redeclare Annex60.Fluid.HeatExchangers.ActiveBeams.Data.Trox.DID632A_nozzleH_length6ft_heating perHea, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial) "Active beam"; equation connect(TOut.port, theConWal.port_a); connect(gain.y, heaFlo.Q_flow); connect(TSetHea.y, conPID.u_s); connect(senTem.T, conPID.u_m); connect(sine.y, gain.u); connect(bou.ports[1], vol.ports[1]); connect(theConWal.port_b, vol.heatPort); connect(heaFlo.port, vol.heatPort); connect(senTem.port, vol.heatPort); connect(beaCooHea.watHea_b, sin_2.ports[1]); connect(beaCooHea.heaPor, vol.heatPort); connect(souAir.ports[1], beaCooHea.air_a); connect(sin_1.ports[1], beaCooHea.watCoo_b); connect(sou_1.ports[1], beaCooHea.watCoo_a); connect(beaCooHea.air_b, vol.ports[2]); connect(pumHea.ports[1], beaCooHea.watHea_a); connect(pumHea.m_flow_in, conPID.y); end HeatingOnly;
