Annex60.Fluid.Movers.Data.Pumps.Wilo

IEA EBC Annex 60

Annex60.Fluid.Movers.Data.Pumps.Wilo

Package with performance data for Wilo pumps

Information

This package contains performance data for Wilo pumps.

Extends from Modelica.Icons.Package (Icon for standard packages).

Package Content

Name	Description
CronolineIL80slash220dash4slash4	Pump data for a Wilo Cronoline-IL 80/220-4/4 pump
Stratos25slash1to4	Pump data for a Wilo Stratos 25/1-4 pump
Stratos25slash1to6	Pump data for a Wilo Stratos 25/1-6 pump
Stratos25slash1to8	Pump data for a Wilo Stratos 25/1-8 pump
Stratos30slash1to4	Pump data for a Wilo Stratos 30/1-4 pump
Stratos30slash1to8	Pump data for a Wilo Stratos 30/1-8 pump
Stratos32slash1to12	Pump data for a Wilo Stratos 32/1-12 pump
Stratos40slash1to12	Pump data for a Wilo Stratos 40/1-12 pump
Stratos40slash1to8	Pump data for a Wilo Stratos 40/1-8 pump
Stratos50slash1to12	Pump data for a Wilo Stratos 50/1-12 pump
Stratos80slash1to12	Pump data for a Wilo Stratos 80/1-12 pump
TopS25slash10	Pump data for a staged Wilo-Top-S 25/10 pump
TopS30slash10	Pump data for a staged Wilo-Top-S 30/10 pump
TopS30slash5	Pump data for a staged Wilo-Top-S 30/5 pump
TopS40slash10	Pump data for a staged Wilo-Top-S 40/10 pump
TopS40slash7	Pump data for a staged Wilo-Top-S 40/7 pump
VeroLine80slash115dash2comma2slash2	Pump data for a Wilo Veroline IP-E 80/115-2,2/2 pump

Annex60.Fluid.Movers.Data.Pumps.Wilo.CronolineIL80slash220dash4slash4

Pump data for a Wilo Cronoline-IL 80/220-4/4 pump

Information

Data from: http://productfinder.wilo.com/nl/BE/product/000000100002c2550002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	1450	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record CronolineIL80slash220dash4slash4 "Pump data for a Wilo Cronoline-IL 80/220-4/4 pump" extends Generic( use_powerCharacteristic=true, speed_rpm_nominal=1450, power(V_flow={0.00303454715219,0.00578898225957,0.00863678804855,0.0113912231559,0.0146125116713,0.0181605975724,0.0214285714286,0.0248366013072,0.0274042950514,0.0282446311858}, P={1905.29339941,2202.03582759,2548.86483304,2812.07908132,3146.06691483,3435.07911022,3592.75276695,3710.09774539,3774.78991597,3793.34692457}), pressure(V_flow={0.00303454715219,0.00578898225957,0.00863678804855,0.0113912231559,0.0146125116713,0.0181605975724,0.0214285714286,0.0248366013072,0.0274042950514,0.0282446311858}, dp={168215.17064,166653.242326,164291.843595,161128.282627,154367.77774,142807.085577,128439.498542,108468.216086,92889.3102384,86895.3009775})); end CronolineIL80slash220dash4slash4;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to4

Pump data for a Wilo Stratos 25/1-4 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	1800	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos25slash1to4 "Pump data for a Wilo Stratos 25/1-4 pump" extends Generic( speed_rpm_nominal=1800, use_powerCharacteristic = true, power(V_flow={5.55555555556e-07,0.000402190923318,0.00052269170579, 0.000643192488263,0.000752738654147,0.000866979655712, 0.000973395931142,0.00108607198748,0.00115962441315}, P={ 14.2085618951,21.2596204596,23.3573239437,25.1349149442,26.581943662, 27.9121571534,28.8498841148,29.4981726255,29.7520982304}), pressure(V_flow={5.55555555556e-07,0.000402190923318,0.00052269170579, 0.000643192488263,0.000752738654147,0.000866979655712, 0.000973395931142,0.00108607198748,0.00115962441315}, dp={ 17066.9518717,16997.0053476,16437.4331551,15528.1283422,14408.9839572, 13149.9465241,11681.0695187,9932.40641711,8533.47593583})); end Stratos25slash1to4;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6

Pump data for a Wilo Stratos 25/1-6 pump

Information

Data from http://productfinder.wilo.com/en/COM/product/00000018000028040002003a/fc_product_datasheet

The nominal rpm is arbitrarily chosen as the rpm of the pump curve in the data sheet that has the highest rpm, without being limited by the maximum power limitation (see dotted curve on figure below). Pump curves (H(m_flow) and P(m_flow)) from the data sheets are digitized using web plot digitizer.

Limitations:

The pump curve cap at high rpm that can be seen is not enforced by the model.
The pump curve may be altered slightly to guarantee that dp/dm<0

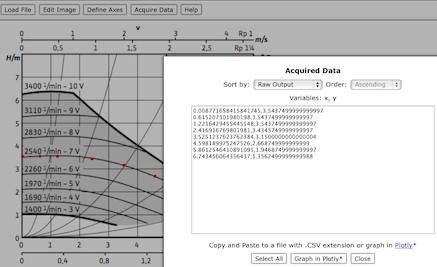

The figure below illustrates a digitized pump curve.

Pump curve

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	2540	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos25slash1to6 "Pump data for a Wilo Stratos 25/1-6 pump" extends Generic( speed_rpm_nominal=2540, use_powerCharacteristic=true, power(V_flow={8.4618254914e-06,0.000274485730449,0.000555832400486, 0.000837082776634,0.00110292011218,0.00138657181719,0.00166761756882, 0.00187198329301}, P={27.7850423935,35.9020280633,46.212011386, 55.5493899809,62.3704820257,68.7045763872,73.3263927089,75.1773568358}), pressure(V_flow={8.4618254914e-06,0.000274485730449,0.000555832400486, 0.000837082776634,0.00110292011218,0.00138657181719,0.00166761756882, 0.00187198329301}, dp={34808.1176471,34738.9411765,34508.1176471, 32430.7058824,29083.7647059,24005.6470588,18004.2352941,13041.5294118})); end Stratos25slash1to6;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to8

Pump data for a Wilo Stratos 25/1-8 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	3040	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos25slash1to8 "Pump data for a Wilo Stratos 25/1-8 pump" extends Generic( speed_rpm_nominal=3040, use_powerCharacteristic=true, power(V_flow={2.66111582909e-06,0.000621486635037,0.000887056469533, 0.0011525489114,0.00140859349908,0.00168018209891,0.00191740837085, 0.00219831980599}, P={42.7878285797,72.7712666315,87.0576021552, 99.7562542248,108.565085499,117.461493336,123.188074537,128.511579716}), pressure(V_flow={2.66111582909e-06,0.000621486635037,0.000887056469533, 0.0011525489114,0.00140859349908,0.00168018209891,0.00191740837085, 0.00219831980599}, dp={50002.7035151,49603.919395,47783.2940685, 44505.1908368,39882.6694921,33688.9797121,27835.1000463,20631.4409942})); end Stratos25slash1to8;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos30slash1to4

Pump data for a Wilo Stratos 30/1-4 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	1800	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos30slash1to4 "Pump data for a Wilo Stratos 30/1-4 pump" extends Generic( speed_rpm_nominal=1800, use_powerCharacteristic=true, power(V_flow={5.55555555556e-07,0.000402190923318,0.00052269170579, 0.000643192488263,0.000752738654147,0.000866979655712, 0.000973395931142,0.00108607198748,0.00115962441315}, P={ 14.2085618951,21.2596204596,23.3573239437,25.1349149442,26.581943662, 27.9121571534,28.8498841148,29.4981726255,29.7520982304}), pressure(V_flow={5.55555555556e-07,0.000402190923318,0.00052269170579, 0.000643192488263,0.000752738654147,0.000866979655712, 0.000973395931142,0.00108607198748,0.00115962441315}, dp={ 17066.9518717,16997.0053476,16437.4331551,15528.1283422,14408.9839572, 13149.9465241,11681.0695187,9932.40641711,8533.47593583})); end Stratos30slash1to4;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos30slash1to8

Pump data for a Wilo Stratos 30/1-8 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	3040	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos30slash1to8 "Pump data for a Wilo Stratos 30/1-8 pump" extends Generic( speed_rpm_nominal=3040, use_powerCharacteristic=true, power(V_flow={2.66111582909e-06,0.000621486635037,0.000887056469533, 0.0011525489114,0.00140859349908,0.00168018209891,0.00191740837085, 0.00219831980599}, P={42.7878285797,72.7712666315,87.0576021552, 99.7562542248,108.565085499,117.461493336,123.188074537,128.511579716}), pressure(V_flow={2.66111582909e-06,0.000621486635037,0.000887056469533, 0.0011525489114,0.00140859349908,0.00168018209891,0.00191740837085, 0.00219831980599}, dp={50002.7035151,49603.919395,47783.2940685, 44505.1908368,39882.6694921,33688.9797121,27835.1000463,20631.4409942})); end Stratos30slash1to8;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos32slash1to12

Pump data for a Wilo Stratos 32/1-12 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	3580	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos32slash1to12 "Pump data for a Wilo Stratos 32/1-12 pump" extends Generic( speed_rpm_nominal=3580, use_powerCharacteristic=true, power(V_flow={2.11830535572e-05,0.000167865707434,0.000700939248601, 0.0012450039968,0.00177258193445,0.00227268185452,0.00272332134293, 0.00312450039968,0.00345423661071}, P={103.427852653,110.225580543, 135.414121033,162.955749719,191.043411366,216.051565678,230.204882307, 236.346847436,239.552825212}), pressure(V_flow={2.11830535572e-05,0.000167865707434,0.000700939248601, 0.0012450039968,0.00177258193445,0.00227268185452,0.00272332134293, 0.00312450039968,0.00345423661071}, dp={59279.4925671,59115.2927989, 59000.1476354,57351.238791,54446.2693068,50284.7374612,44865.6398104, 38328.4550274,32066.9663984})); end Stratos32slash1to12;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos40slash1to12

Pump data for a Wilo Stratos 40/1-12 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	3690	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos40slash1to12 "Pump data for a Wilo Stratos 40/1-12 pump" extends Generic( speed_rpm_nominal=3690, use_powerCharacteristic=true, power(V_flow={2.05415499533e-05,0.0012380952381,0.00197759103641,0.00261998132586, 0.00315779645191,0.00385247432306,0.00436788048553,0.00493557422969}, P={195.711338777,254.50525152,302.203269367,339.387400348,367.008331835, 392.162896856,397.658764999,404.489181997}), pressure(V_flow={2.05415499533e-05,0.0012380952381,0.00197759103641,0.00261998132586, 0.00315779645191,0.00385247432306,0.00436788048553,0.00493557422969}, dp={78528.2698296,78278.944236,77854.9591567,74108.1678158,68408.8742011, 57809.9050693,48393.0944907,37408.2956474})); end Stratos40slash1to12;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos40slash1to8

Pump data for a Wilo Stratos 40/1-8 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	3830	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos40slash1to8 "Pump data for a Wilo Stratos 40/1-8 pump" extends Generic( speed_rpm_nominal=3830, use_powerCharacteristic=true, power(V_flow={4.03163741226e-06,0.00188290448506,0.00245068662086, 0.00286231420438,0.00325508173616,0.00357919645424,0.00394696189973}, P={99.4470603052,175.709481933,197.426392754,209.437047607,213.2290948, 215.740841723,218.557203232}), pressure(V_flow={4.03163741226e-06,0.00188290448506,0.00245068662086, 0.00286231420438,0.00325508173616,0.00357919645424,0.00394696189973}, dp={50361.3292164,50002.6907452,46761.3220062,42267.4693149, 36095.691563,30066.6880748,23476.280464})); end Stratos40slash1to8;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos50slash1to12

Pump data for a Wilo Stratos 50/1-12 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	3690	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos50slash1to12 "Pump data for a Wilo Stratos 50/1-12 pump" extends Generic( speed_rpm_nominal=3690, use_powerCharacteristic=true, power(V_flow={5.55555555556e-07,0.00209948320413,0.00303617571059, 0.00389750215332,0.0046188630491,0.00546942291128,0.00621231696813, 0.00695521102498,0.00755813953488}, P={205.291823945,337.504763698, 400.584905585,453.68913657,488.040727585,515.872422868,528.307902115, 531.276246541,523.90128749}), pressure(V_flow={5.55555555556e-07,0.00209948320413,0.00303617571059, 0.00389750215332,0.0046188630491,0.00546942291128,0.00621231696813, 0.00695521102498,0.00755813953488}, dp={74298.6885246,74154.3248189, 73404.0823485,70722.2584827,66879.2916508,59372.6282882,49547.6683187, 37985.8558902,27964.6709874})); end Stratos50slash1to12;

Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos80slash1to12

Pump data for a Wilo Stratos 80/1-12 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000000e000379df0002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	2610	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record Stratos80slash1to12 "Pump data for a Wilo Stratos 80/1-12 pump" extends Generic( speed_rpm_nominal=2610, use_powerCharacteristic=true, power(V_flow={8.79043600562e-06,0.00277777777778,0.00556874120956, 0.00776635021097,0.00978815049226,0.0113484528833,0.0127329465541, 0.013985583685,0.0154360056259}, P={437.425146701,588.954435301, 792.603370491,931.705429399,1048.15648043,1115.77190985,1154.92222088, 1171.51603429,1166.47479929}), pressure(V_flow={8.79043600562e-06,0.00277777777778,0.00556874120956, 0.00776635021097,0.00978815049226,0.0113484528833,0.0127329465541, 0.013985583685,0.0154360056259}, dp={78355.8975904,78243.6144578, 78054.5060241,75596.0963855,70490.1686747,63682.2650602,55361.4939759, 45527.8554217,30966.5060241})); end Stratos80slash1to12;

Annex60.Fluid.Movers.Data.Pumps.Wilo.TopS25slash10

Pump data for a staged Wilo-Top-S 25/10 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/0000001000029c210002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	2650	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{0,1950,2250,2650}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record TopS25slash10 "Pump data for a staged Wilo-Top-S 25/10 pump" extends Generic( speed_rpm_nominal=2650, use_powerCharacteristic = true, power(V_flow={3.51617440225e-06,0.000523909985935,0.000847398030942, 0.00115682137834,0.00148382559775,0.00177918424754, 0.00206047819972,0.00229254571027,0.0025,0.00271097046414, 0.00282700421941}, P={192.787993617,238.762280675,272.937843988,301.381574494, 326.18493197,344.613937245,359.220335761,369.040720135, 376.979332273,382.887700535,382.887700535}), pressure(V_flow={3.51617440225e-06,0.000523909985935,0.000847398030942, 0.00115682137834,0.00148382559775,0.00177918424754, 0.00206047819972,0.00229254571027,0.0025,0.00271097046414, 0.00282700421941}, dp={110125.414283,106765.16619,100392.787862,92220.6199738, 81651.34693,70879.932776,60307.3708281,50930.4520427, 41152.0339559,29575.0912725,22388.3296727}), speeds_rpm = {0, 1950, 2250, 2650}); end TopS25slash10;

Annex60.Fluid.Movers.Data.Pumps.Wilo.TopS30slash10

Pump data for a staged Wilo-Top-S 30/10 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/00000009000287740001003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	2650	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{0,1950,2250,2650}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record TopS30slash10 "Pump data for a staged Wilo-Top-S 30/10 pump" extends Generic( speed_rpm_nominal=2650, use_powerCharacteristic = true, power(V_flow={3.51617440225e-06,0.000523909985935,0.000847398030942, 0.00115682137834,0.00148382559775,0.00177918424754, 0.00206047819972,0.00229254571027,0.0025, 0.00271097046414,0.00282700421941}, P={192.787993617,238.762280675,272.937843988, 301.381574494,326.18493197,344.613937245, 359.220335761,369.040720135,376.979332273, 382.887700535,382.887700535}), pressure(V_flow={3.51617440225e-06,0.000523909985935,0.000847398030942, 0.00115682137834,0.00148382559775,0.00177918424754, 0.00206047819972,0.00229254571027,0.0025,0.00271097046414, 0.00282700421941}, dp={110125.414283,106765.16619,100392.787862,92220.6199738, 81651.34693,70879.932776,60307.3708281,50930.4520427, 41152.0339559,29575.0912725,22388.3296727}), speeds_rpm = {0, 1950, 2250, 2650}); end TopS30slash10;

Annex60.Fluid.Movers.Data.Pumps.Wilo.TopS30slash5

Pump data for a staged Wilo-Top-S 30/5 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/00000000000296670002003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	2650	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{0,1890,2190,2650}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record TopS30slash5 "Pump data for a staged Wilo-Top-S 30/5 pump" extends Generic( speed_rpm_nominal=2650, use_powerCharacteristic = true, power(V_flow={4.24448217317e-06,0.000275419732126,0.000501792114695, 0.000688077721185,0.000827202414639,0.00101584606678, 0.0011714770798,0.00132710809281,0.00148981324278, 0.00166195057536}, P={83.0171256559,101.117659669,113.263045942,122.28302674, 128.764680916,135.257448954,139.852003784,143.350736549, 145.269964752,146.115128625}), pressure(V_flow={4.24448217317e-06,0.000275419732126,0.000501792114695, 0.000688077721185,0.000827202414639,0.00101584606678, 0.0011714770798,0.00132710809281,0.00148981324278, 0.00166195057536}, dp={52688.1456954,49223.2450331,45151.986755,40994.1059603, 37269.3377483,31205.7615894,25661.9205298,19598.3443709, 12755.1655629,4699.27152318}), speeds_rpm = {0, 1890, 2190, 2650}); end TopS30slash5;

Annex60.Fluid.Movers.Data.Pumps.Wilo.TopS40slash10

Pump data for a staged Wilo-Top-S 40/10 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/000000120001ad890001003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	2900	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{0,2600,2800}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record TopS40slash10 "Pump data for a staged Wilo-Top-S 40/10 pump" extends Generic( speed_rpm_nominal=2900, use_powerCharacteristic = true, power(V_flow={2.29252636405e-05,0.00110041265475,0.00221610881858, 0.00334708849152,0.00417239798258,0.0048448723827, 0.00537979520098,0.00605991135565,0.00625859697387}, P={432.950095719,492.916811695,565.94308364,630.111524164, 658.215613383,671.6839839,676.925957128,671.543363813, 668.661679135}), pressure(V_flow={2.29252636405e-05,0.00110041265475,0.00221610881858, 0.00334708849152,0.00417239798258,0.0048448723827, 0.00537979520098,0.00605991135565,0.00625859697387}, dp={98785.5232361,97106.6860151,91320.1257409,79370.6856694, 66042.1923274,53051.3974809,40227.5679296,25353.7625039, 20566.1680722}), speeds_rpm = {0, 2600, 2800}); end TopS40slash10;

Annex60.Fluid.Movers.Data.Pumps.Wilo.TopS40slash7

Pump data for a staged Wilo-Top-S 40/7 pump

Information

Data from: http://productfinder.wilo.com/en/COM/product/000000120001ad1f0001003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	2800	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{0,2200,2450,2650}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record TopS40slash7 "Pump data for a staged Wilo-Top-S 40/7 pump" extends Generic( speed_rpm_nominal=2800, use_powerCharacteristic = true, power(V_flow={9.97406742472e-07,0.000621384400559,0.00113006183922, 0.00162078595651,0.00206961899062,0.00244663873928, 0.0029074406543,0.00330241372432,0.00375723119888, 0.00418212647117,0.00466686614802}, P={254.806788065,282.40881459,303.06122449,330.952380952, 347.819548872,360.093167702,372.657450077,380.261136713, 386.328725038,390.607012036,391.047619048}), pressure(V_flow={9.97406742472e-07,0.000621384400559,0.00113006183922,0.00162078595651, 0.00206961899062,0.00244663873928,0.0029074406543,0.00330241372432, 0.00375723119888,0.00418212647117,0.00466686614802}, dp={70951.3953488,69946.0659263,67225.7989228,63706.4291679, 59843.4165588,54951.3185253,48807.3201536,42775.1388251, 34577.6798464,26835.4759718,17270.2037493}), speeds_rpm = {0, 2200, 2450, 2650}); end TopS40slash7;

Annex60.Fluid.Movers.Data.Pumps.Wilo.VeroLine80slash115dash2comma2slash2

Pump data for a Wilo Veroline IP-E 80/115-2,2/2 pump

Information

Data from: http://productfinder.wilo.com/nl/BE/product/0000001d000149e80001003a/fc_product_datasheet

See Annex60.Fluid.Movers.Data.Pumps.Wilo.Stratos25slash1to6 for more information about how the data is derived.

Extends from Generic (Generic data record for movers).

Parameters

Type	Name	Default	Description
Power computation
Boolean	use_powerCharacteristic	true	Use power data instead of motor efficiency
efficiencyParameters	hydraulicEfficiency		Hydraulic efficiency (used if use_powerCharacteristic=false)
efficiencyParameters	motorEfficiency		Electric motor efficiency (used if use_powerCharacteristic=false)
Motor heat rejection
Boolean	motorCooledByFluid	true	If true, then motor heat is added to fluid stream
Normalized speeds (used in model, default values assigned from speeds in rpm
Real	speed_nominal	1	Nominal rotational speed for flow characteristic [1]
Real	constantSpeed	constantSpeed_rpm/speed_rpm_...	Normalized speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [1]
Real	speeds[:]	speeds_rpm/speed_rpm_nominal	Vector of normalized speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [1]
Speeds in RPM
AngularVelocity_rpm	speed_rpm_nominal	2900	Nominal rotational speed for flow characteristic [rev/min]
AngularVelocity_rpm	constantSpeed_rpm	speed_rpm_nominal	Speed set point, used if inputType = Annex60.Fluid.Types.InputType.Constant [rev/min]
AngularVelocity_rpm	speeds_rpm[:]	{speed_rpm_nominal}	Vector of speed set points, used if inputType = Annex60.Fluid.Types.InputType.Stages [rev/min]

Modelica definition

record VeroLine80slash115dash2comma2slash2 "Pump data for a Wilo Veroline IP-E 80/115-2,2/2 pump" extends Generic( speed_rpm_nominal=2900, use_powerCharacteristic=true, power(V_flow={0.0,0.00381944444444,0.00770833333333,0.0111111111111,0.014375,0.0171527777778,0.0197916666667,0.0220138888889}, P={1712.23021583,1939.82995422,2319.7768316,2599.92683819,2775.17985612,2815.09529219,2709.57970466,2571.61543492}), pressure(V_flow={0.0,0.00381944444444,0.00770833333333,0.0111111111111,0.014375,0.0171527777778,0.0197916666667,0.0220138888889}, dp={157548.6,150053.76,139302.0,127431.9,113011.2,97943.04,76596.48,57133.44}), motorCooledByFluid=true); end VeroLine80slash115dash2comma2slash2;

http://iea-annex60.org
