Collection of validation models for FMU export

Information

This package contains validation models for the classes in Annex60.Fluid.FMI.ExportContainers. The test are done for different media, with and without flow reversal, and for air with zero, one or two contaminants.

Note that most validation models contain simple input data or systems which may not be realistic, but are useful to validate that the models are implemented correctly. These model outputs are stored as reference data and used for continuous validation whenever models in the library change.

Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).

Package Content

Name	Description
HVACThermalZoneAir1	Validation model for the convective HVAC system
HVACThermalZoneAir2	Validation model for the convective HVAC system
HVACThermalZoneAir3	Validation model for the convective HVAC system
HVACThermalZoneSimpleAir1	Validation model for the convective HVAC system
HVACThermalZoneSimpleAir2	Validation model for the convective HVAC system
HVACThermalZoneSimpleAir3	Validation model for the convective HVAC system
ThermalZoneAir1	Validation of simple thermal zone
ThermalZoneAir2	Validation of simple thermal zone
ThermalZoneAir3	Validation of simple thermal zone
ThermalZoneSimpleAir1	Validation of simple thermal zone
ThermalZoneSimpleAir2	Validation of simple thermal zone
ThermalZoneSimpleAir3	Validation of simple thermal zone

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1

Validation model for the convective HVAC system

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.HVACZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.HVACZone (Partial block to export an HVAC system that has no radiative component and that serves multiple zones as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Outlet	fluPor[size(hvacAda.fluPor, 1)]	Fluid connector
input RealInput	TRadZon	Radiative temperature of the zone [K]
output RealOutput	QGaiRad_flow	Radiant heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiSenCon_flow	Convective sensible heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiLat_flow	Latent heat input into zone (positive if heat gain) [W]

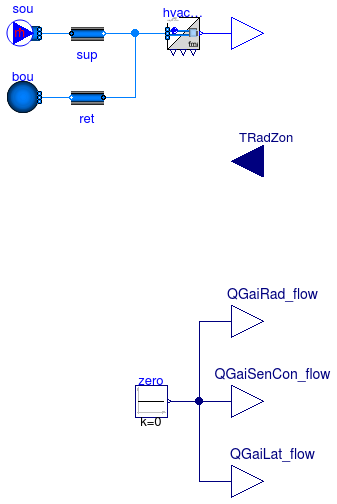

Modelica definition

block HVACThermalZoneAir1 "Validation model for the convective HVAC system" extends Annex60.Fluid.FMI.ExportContainers.HVACZone( redeclare package Medium = Annex60.Media.Air, hvacAda(nPorts=2)); protected Sources.Boundary_pT bou( redeclare package Medium = Medium, nPorts=1) "Boundary condition"; FixedResistances.PressureDrop sup( redeclare final package Medium = Medium, final m_flow_nominal=0.1, final dp_nominal=200, from_dp=true) "Supply air duct"; FixedResistances.PressureDrop ret( redeclare final package Medium = Medium, final m_flow_nominal=0.1, final dp_nominal=200) "Return air duct"; Modelica.Blocks.Sources.Constant zero(k=0) "Zero output signal"; protected Sources.MassFlowSource_T sou( redeclare package Medium = Medium, nPorts=1, m_flow=0.1) "Mass flow source"; equation connect(bou.ports[1], ret.port_b); connect(zero.y, QGaiRad_flow); connect(zero.y, QGaiSenCon_flow); connect(zero.y, QGaiLat_flow); connect(sup.port_b, hvacAda.ports[1]); connect(ret.port_a, hvacAda.ports[2]); connect(sou.ports[1], sup.port_a); end HVACThermalZoneAir1;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir2

Validation model for the convective HVAC system

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir2

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.HVACZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 (Validation model for the convective HVAC system).

Connectors

Type	Name	Description
Outlet	fluPor[size(hvacAda.fluPor, 1)]	Fluid connector
input RealInput	TRadZon	Radiative temperature of the zone [K]
output RealOutput	QGaiRad_flow	Radiant heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiSenCon_flow	Convective sensible heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiLat_flow	Latent heat input into zone (positive if heat gain) [W]

Modelica definition

block HVACThermalZoneAir2 "Validation model for the convective HVAC system" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 ( redeclare package Medium = Annex60.Media.Air(extraPropertiesNames={"CO2"})); end HVACThermalZoneAir2;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir3

Validation model for the convective HVAC system

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir3

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.HVACZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 (Validation model for the convective HVAC system).

Connectors

Type	Name	Description
Outlet	fluPor[size(hvacAda.fluPor, 1)]	Fluid connector
input RealInput	TRadZon	Radiative temperature of the zone [K]
output RealOutput	QGaiRad_flow	Radiant heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiSenCon_flow	Convective sensible heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiLat_flow	Latent heat input into zone (positive if heat gain) [W]

Modelica definition

block HVACThermalZoneAir3 "Validation model for the convective HVAC system" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 ( redeclare package Medium = Annex60.Media.Air(extraPropertiesNames={"CO2", "VOC", "CH2O"})); end HVACThermalZoneAir3;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneSimpleAir1

Validation model for the convective HVAC system

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneSimpleAir1

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.HVACZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 (Validation model for the convective HVAC system).

Connectors

Type	Name	Description
Outlet	fluPor[size(hvacAda.fluPor, 1)]	Fluid connector
input RealInput	TRadZon	Radiative temperature of the zone [K]
output RealOutput	QGaiRad_flow	Radiant heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiSenCon_flow	Convective sensible heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiLat_flow	Latent heat input into zone (positive if heat gain) [W]

Modelica definition

block HVACThermalZoneSimpleAir1 "Validation model for the convective HVAC system" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 ( redeclare package Medium = Modelica.Media.Air.SimpleAir); end HVACThermalZoneSimpleAir1;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneSimpleAir2

Validation model for the convective HVAC system

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneSimpleAir2

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.HVACZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 (Validation model for the convective HVAC system).

Connectors

Type	Name	Description
Outlet	fluPor[size(hvacAda.fluPor, 1)]	Fluid connector
input RealInput	TRadZon	Radiative temperature of the zone [K]
output RealOutput	QGaiRad_flow	Radiant heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiSenCon_flow	Convective sensible heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiLat_flow	Latent heat input into zone (positive if heat gain) [W]

Modelica definition

block HVACThermalZoneSimpleAir2 "Validation model for the convective HVAC system" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 ( redeclare package Medium = Modelica.Media.Air.SimpleAir(extraPropertiesNames={"CO2"})); end HVACThermalZoneSimpleAir2;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneSimpleAir3

Validation model for the convective HVAC system

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneSimpleAir3

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.HVACZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 (Validation model for the convective HVAC system).

Connectors

Type	Name	Description
Outlet	fluPor[size(hvacAda.fluPor, 1)]	Fluid connector
input RealInput	TRadZon	Radiative temperature of the zone [K]
output RealOutput	QGaiRad_flow	Radiant heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiSenCon_flow	Convective sensible heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiLat_flow	Latent heat input into zone (positive if heat gain) [W]

Modelica definition

block HVACThermalZoneSimpleAir3 "Validation model for the convective HVAC system" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.HVACThermalZoneAir1 ( redeclare package Medium = Modelica.Media.Air.SimpleAir(extraPropertiesNames={"CO2", "VOC", "CH2O"})); end HVACThermalZoneSimpleAir3;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1

Validation of simple thermal zone

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.ThermalZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.ThermalZone (Partial block to export a model of a thermal zone as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium model
Integer	nPorts	2	Number of fluid ports
Volume	V	6103	Room volume [m3]
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - 10E3/30*(TOu...	Nominal cooling load of the room [W]
MassFlowRate	m_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]

Connectors

Type	Name	Description
replaceable package Medium		Medium model
Inlet	fluPor[nPorts]	Fluid connector
output RealOutput	TOut	Outdoor temperature [K]

Modelica definition

block ThermalZoneAir1 "Validation of simple thermal zone" extends Annex60.Fluid.FMI.ExportContainers.ThermalZone( redeclare package Medium = Annex60.Media.Air, nPorts = 2); parameter Modelica.SIunits.Volume V=6*10*3 "Room volume"; ///////////////////////////////////////////////////////// // Air temperatures at design conditions parameter Modelica.SIunits.Temperature TASup_nominal = 273.15+18 "Nominal air temperature supplied to room"; parameter Modelica.SIunits.Temperature TRooSet = 273.15+24 "Nominal room air temperature"; parameter Modelica.SIunits.Temperature TOut_nominal = 273.15+30 "Design outlet air temperature"; ///////////////////////////////////////////////////////// // Cooling loads and air mass flow rates parameter Modelica.SIunits.HeatFlowRate QRooInt_flow= 1000 "Internal heat gains of the room"; parameter Modelica.SIunits.HeatFlowRate QRooC_flow_nominal= -QRooInt_flow-10E3/30*(TOut_nominal-TRooSet) "Nominal cooling load of the room"; parameter Modelica.SIunits.MassFlowRate m_flow_nominal= 1.3*QRooC_flow_nominal/1006/(TASup_nominal-TRooSet) "Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback"; Modelica.Blocks.Interfaces.RealOutput TOut(final unit="K") "Outdoor temperature"; Modelica.Thermal.HeatTransfer.Sources.PrescribedTemperature TOut1 "Outside temperature"; Modelica.Thermal.HeatTransfer.Components.ThermalConductor theCon(G=10000/30) "Thermal conductance with the ambient"; Modelica.Thermal.HeatTransfer.Sources.FixedHeatFlow preHea(Q_flow= QRooInt_flow) "Prescribed heat flow"; MixingVolumes.MixingVolume vol( redeclare package Medium = Medium, m_flow_nominal=m_flow_nominal, V=V, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, nPorts=2, mSenFac=3); Modelica.Blocks.Sources.Constant TOutSou(k=303.15) "Outdoor temperature"; protected FixedResistances.PressureDrop res1( redeclare final package Medium = Medium, final m_flow_nominal=m_flow_nominal, final dp_nominal=10, linearized=true) "Flow resistance"; FixedResistances.PressureDrop res2( redeclare final package Medium = Medium, final m_flow_nominal=m_flow_nominal, final dp_nominal=10, linearized=true) "Flow resistance"; public Sensors.MassFlowRate senMasFlo[nPorts](redeclare final package Medium = Medium) "Mass flow rate sensor to connect thermal adapter with thermal zone."; equation connect(theCon.port_b,vol. heatPort); connect(preHea.port,vol. heatPort); connect(TOut1.port,theCon. port_a); connect(vol.heatPort, theZonAda.heaPorAir); connect(TOutSou.y, TOut1.T); connect(TOut, TOutSou.y); connect(res2.port_b, vol.ports[1]); connect(res1.port_b, vol.ports[2]); connect(senMasFlo.port_a, theZonAda.ports); connect(senMasFlo[1].port_b, res1.port_a); connect(senMasFlo[2].port_b, res2.port_a); end ThermalZoneAir1;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir2

Validation of simple thermal zone

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir2

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.ThermalZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1 (Validation of simple thermal zone).

Parameters

Type	Name	Default	Description
Integer	nPorts	2	Number of fluid ports
Volume	V	6103	Room volume [m3]
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - 10E3/30*(TOu...	Nominal cooling load of the room [W]
MassFlowRate	m_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]

Connectors

Type	Name	Description
Inlet	fluPor[nPorts]	Fluid connector
output RealOutput	TOut	Outdoor temperature [K]

Modelica definition

block ThermalZoneAir2 "Validation of simple thermal zone" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1( redeclare package Medium = Annex60.Media.Air(extraPropertiesNames={"CO2"})); end ThermalZoneAir2;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir3

Validation of simple thermal zone

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir3

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.ThermalZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1 (Validation of simple thermal zone).

Parameters

Type	Name	Default	Description
Integer	nPorts	2	Number of fluid ports
Volume	V	6103	Room volume [m3]
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - 10E3/30*(TOu...	Nominal cooling load of the room [W]
MassFlowRate	m_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]

Connectors

Type	Name	Description
Inlet	fluPor[nPorts]	Fluid connector
output RealOutput	TOut	Outdoor temperature [K]

Modelica definition

block ThermalZoneAir3 "Validation of simple thermal zone" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1( redeclare package Medium = Annex60.Media.Air(extraPropertiesNames={"CO2", "VOC", "CH2O"})); end ThermalZoneAir3;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneSimpleAir1

Validation of simple thermal zone

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneSimpleAir1

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.ThermalZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1 (Validation of simple thermal zone).

Parameters

Type	Name	Default	Description
Integer	nPorts	2	Number of fluid ports
Volume	V	6103	Room volume [m3]
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - 10E3/30*(TOu...	Nominal cooling load of the room [W]
MassFlowRate	m_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]

Connectors

Type	Name	Description
Inlet	fluPor[nPorts]	Fluid connector
output RealOutput	TOut	Outdoor temperature [K]

Modelica definition

block ThermalZoneSimpleAir1 "Validation of simple thermal zone" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1( redeclare package Medium = Modelica.Media.Air.SimpleAir); end ThermalZoneSimpleAir1;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneSimpleAir2

Validation of simple thermal zone

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneSimpleAir2

Information

This example validates that Annex60.Fluid.FMI.ExportContainers.ThermalZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1 (Validation of simple thermal zone).

Parameters

Type	Name	Default	Description
Integer	nPorts	2	Number of fluid ports
Volume	V	6103	Room volume [m3]
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - 10E3/30*(TOu...	Nominal cooling load of the room [W]
MassFlowRate	m_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]

Connectors

Type	Name	Description
Inlet	fluPor[nPorts]	Fluid connector
output RealOutput	TOut	Outdoor temperature [K]

Modelica definition

block ThermalZoneSimpleAir2 "Validation of simple thermal zone" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1( redeclare package Medium = Modelica.Media.Air.SimpleAir(extraPropertiesNames={"CO2"})); end ThermalZoneSimpleAir2;

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneSimpleAir3

Validation of simple thermal zone

Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneSimpleAir3

Information

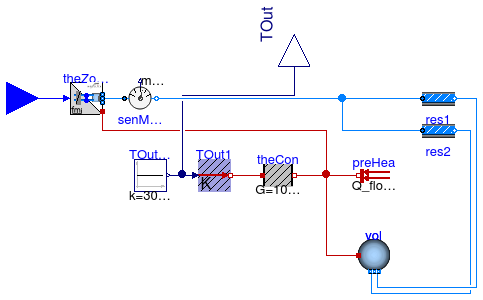

This example validates that Annex60.Fluid.FMI.ExportContainers.ThermalZone exports correctly as an FMU.

Extends from Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1 (Validation of simple thermal zone).

Parameters

Type	Name	Default	Description
Integer	nPorts	2	Number of fluid ports
Volume	V	6103	Room volume [m3]
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - 10E3/30*(TOu...	Nominal cooling load of the room [W]
MassFlowRate	m_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]

Connectors

Type	Name	Description
Inlet	fluPor[nPorts]	Fluid connector
output RealOutput	TOut	Outdoor temperature [K]

Modelica definition

block ThermalZoneSimpleAir3 "Validation of simple thermal zone" extends Annex60.Fluid.FMI.ExportContainers.Validation.FMUs.ThermalZoneAir1( redeclare package Medium = Modelica.Media.Air.SimpleAir(extraPropertiesNames={"CO2", "VOC", "CH2O"})); end ThermalZoneSimpleAir3;

http://iea-annex60.org
