Annex60.Fluid.FMI.ExportContainers.Examples.FMUs

IEA EBC Annex 60

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs

Collection of example models

Information

This package contains examples for the use of models that can be found in Annex60.Fluid.FMI.ExportContainers.

Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).

Package Content

Name	Description
Fan	Declaration of an FMU that exports a fan
FlowSplitter_u	Declaration of an FMU that exports a flow splitter
HVACZone	Declaration of an FMU that exports a simple convective only HVAC system
HVACZones	Declaration of an FMU that exports a simple convective only HVAC system for two zones
HeaterCooler_T	Declaration of an FMU that exports an ideal heater or cooler with prescribed outlet temperature
HeaterCooler_u	Declaration of an FMU that exports an ideal heater or cooler with prescribed heat flow rate
Humidifier_u	Declaration of an FMU that exports an ideal humidifier
IdealSource_m_flow	Declaration of an FMU that exports a mass flow source and sink
MixingVolume	Declaration of an FMU that exports a control volume

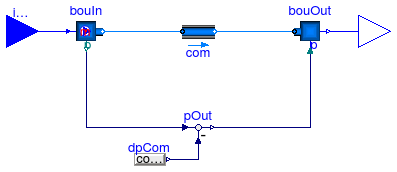

PressureDrop	Declaration of an FMU that exports a fixed resistance

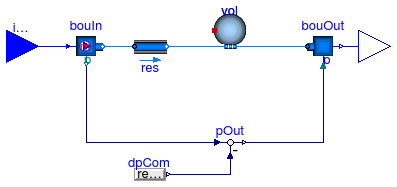

ResistanceVolume	Declaration of an FMU that exports a flow resistance and control volume

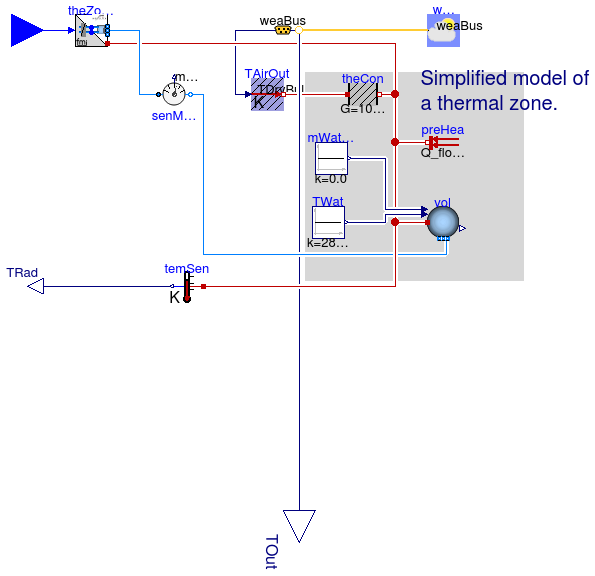

ThermalZone	Declaration of an FMU that exports a thermal zone

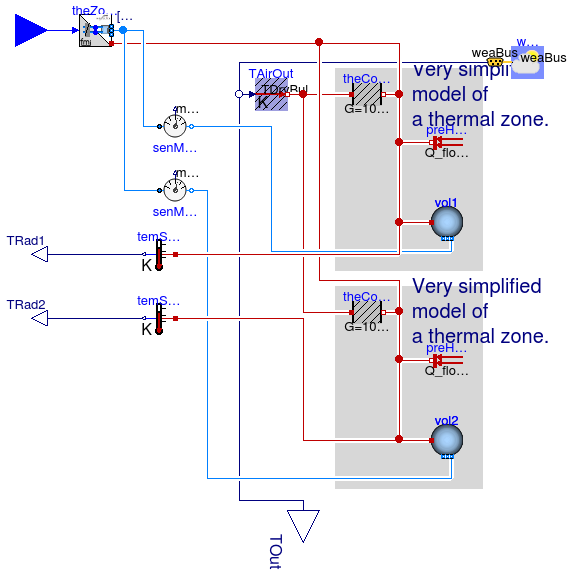

ThermalZones	Declaration of an FMU that exports multiple thermal zones
TwoPortPassThrough	Declaration of an FMU that exports a block that simply passes all the inputs to the outputs

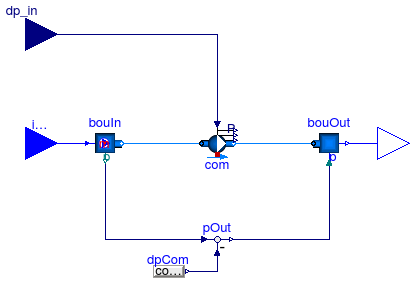

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.Fan

Declaration of an FMU that exports a fan

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.Fan

Information

This example demonstrates how to export an FMU with a fluid flow component. The FMU has an instance of Annex60.Fluid.FixedResistances.FlowMachine_dp.

See Annex60.Fluid.FMI.UsersGuide for why there is no model that exports Annex60.Fluid.Movers.FlowMachine_m_flow.

Extends from Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort (Container to export thermofluid flow models with two ports as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
MassFlowRate	m_flow_nominal	0.01	Nominal mass flow rate [kg/s]
PressureDifference	dp_nominal	500	Pressure drop at nominal mass flow rate [Pa]
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet
input RealInput	dp_in	Prescribed pressure rise [Pa]

Modelica definition

block Fan "Declaration of an FMU that exports a fan" extends Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort( redeclare replaceable package Medium = Annex60.Media.Air, redeclare final Movers.FlowControlled_dp com( final m_flow_nominal=m_flow_nominal, final filteredSpeed=false, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState)); parameter Modelica.SIunits.MassFlowRate m_flow_nominal=0.01 "Nominal mass flow rate"; parameter Modelica.SIunits.PressureDifference dp_nominal(displayUnit="Pa")=500 "Pressure drop at nominal mass flow rate"; Modelica.Blocks.Interfaces.RealInput dp_in(min=0, final unit="Pa") "Prescribed pressure rise"; equation connect(dp_in, com.dp_in); end Fan;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.FlowSplitter_u

Declaration of an FMU that exports a flow splitter

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.FlowSplitter_u

Information

This example demonstrates how to export an FMU with a fluid flow component. The FMU is an instance of Annex60.Fluid.FMI.FlowSplitter_u.

Extends from Annex60.Fluid.FMI.FlowSplitter_u (Model of a flow splitter that can be exported as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
MassFlowRate	m_flow_nominal[nout]	{0.1,0.2}	Nominal mass flow rate for each outlet [kg/s]
Integer	nout	2	Number of outlets
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet[nout]	Fluid outlet
input RealInput	u[nout]	Control signal for the mass flow rates [1]

Modelica definition

block FlowSplitter_u "Declaration of an FMU that exports a flow splitter" extends Annex60.Fluid.FMI.FlowSplitter_u( redeclare replaceable package Medium = Annex60.Media.Air, nout=2, m_flow_nominal={0.1, 0.2}, allowFlowReversal(start=false)); end FlowSplitter_u;

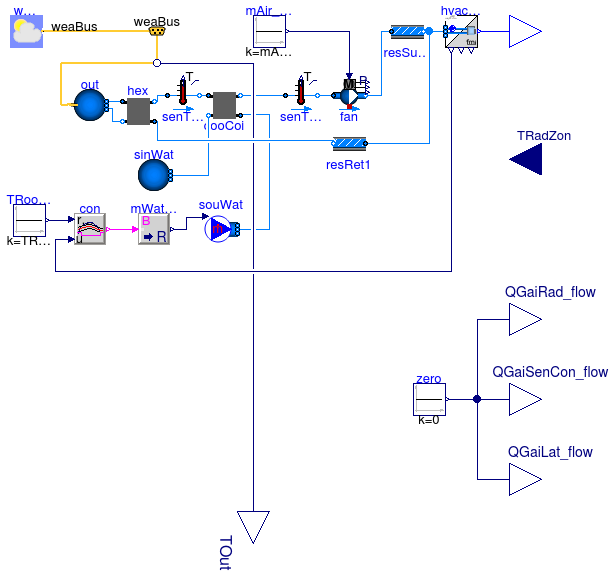

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HVACZone

Declaration of an FMU that exports a simple convective only HVAC system

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HVACZone

Information

This example demonstrates how to export a model of an HVAC system that only provides convective cooling to a single thermal zone. The HVAC system is adapted from Annex60.Examples.Tutorial.SpaceCooling.System3, but flow resistances have been added to have the same configuration as Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HVACZones. Having the same configuration is needed for the validation test Annex60.Fluid.FMI.ExportContainers.Validation.RoomHVAC.

The example extends from Annex60.Fluid.FMI.ExportContainers.HVACZone which provides the input and output signals that are needed to interface the acausal HVAC system model with causal connectors of FMI. The instance hvacAda is the HVAC adapter that contains on the left a fluid port, and on the right signal ports which are then used to connect at the top-level of the model to signal ports which are exposed at the FMU interface.

Extends from Annex60.Fluid.FMI.ExportContainers.HVACZone (Partial block to export an HVAC system that has no radiative component and that serves multiple zones as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
replaceable package MediumA		Annex60.Media.Air	Medium for air
replaceable package MediumW		Annex60.Media.Water	Medium for water
Real	eps	0.8	Heat recovery effectiveness
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
Temperature	THeaRecLvg	TOut_nominal - eps*(TOut_nom...	Air temperature leaving the heat recovery [K]
Real	UA	10E3	Average UA-value of the room [W/K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - UA/30*(TOut_...	Nominal cooling load of the room [W]
MassFlowRate	mA_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]
TemperatureDifference	dTFan	2	Estimated temperature raise across fan that needs to be made up by the cooling coil [K]
HeatFlowRate	QCoiC_flow_nominal	4*(QRooC_flow_nominal + mA_f...	Cooling load of coil, taking into account economizer, and increased due to latent heat removal [W]
Temperature	TWSup_nominal	273.15 + 16	Water supply temperature [K]
Temperature	TWRet_nominal	273.15 + 12	Water return temperature [K]
MassFlowRate	mW_flow_nominal	QCoiC_flow_nominal/(TWRet_no...	Nominal water mass flow rate [kg/s]
ConstantEffectiveness	cooCoi	redeclare Annex60.Fluid.Heat...	Cooling coil (with sensible cooling only)
Assumptions
Boolean	allowFlowReversal	false	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Outlet	fluPor[size(hvacAda.fluPor, 1)]	Fluid connector
input RealInput	TRadZon	Radiative temperature of the zone [K]
output RealOutput	QGaiRad_flow	Radiant heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiSenCon_flow	Convective sensible heat input into zone (positive if heat gain) [W]
output RealOutput	QGaiLat_flow	Latent heat input into zone (positive if heat gain) [W]
replaceable package MediumA		Medium for air
replaceable package MediumW		Medium for water
Bus	weaBus	Weather data bus
output RealOutput	TOut	Outdoor temperature [K]

Modelica definition

block HVACZone "Declaration of an FMU that exports a simple convective only HVAC system" extends Annex60.Fluid.FMI.ExportContainers.HVACZone( redeclare final package Medium = MediumA, hvacAda(nPorts=2)); replaceable package MediumA = Annex60.Media.Air "Medium for air"; replaceable package MediumW = Annex60.Media.Water "Medium for water"; parameter Boolean allowFlowReversal = false "= true to allow flow reversal, false restricts to design direction (inlet -> outlet)"; ////////////////////////////////////////////////////////// // Heat recovery effectiveness parameter Real eps = 0.8 "Heat recovery effectiveness"; ///////////////////////////////////////////////////////// // Air temperatures at design conditions parameter Modelica.SIunits.Temperature TASup_nominal = 273.15+18 "Nominal air temperature supplied to room"; parameter Modelica.SIunits.Temperature TRooSet = 273.15+24 "Nominal room air temperature"; parameter Modelica.SIunits.Temperature TOut_nominal = 273.15+30 "Design outlet air temperature"; parameter Modelica.SIunits.Temperature THeaRecLvg= TOut_nominal - eps*(TOut_nominal-TRooSet) "Air temperature leaving the heat recovery"; ///////////////////////////////////////////////////////// // Cooling loads and air mass flow rates parameter Real UA(unit="W/K") = 10E3 "Average UA-value of the room"; parameter Modelica.SIunits.HeatFlowRate QRooInt_flow= 1000 "Internal heat gains of the room"; parameter Modelica.SIunits.HeatFlowRate QRooC_flow_nominal= -QRooInt_flow-UA/30*(TOut_nominal-TRooSet) "Nominal cooling load of the room"; parameter Modelica.SIunits.MassFlowRate mA_flow_nominal= 1.3*QRooC_flow_nominal/1006/(TASup_nominal-TRooSet) "Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback"; parameter Modelica.SIunits.TemperatureDifference dTFan = 2 "Estimated temperature raise across fan that needs to be made up by the cooling coil"; parameter Modelica.SIunits.HeatFlowRate QCoiC_flow_nominal=4* (QRooC_flow_nominal + mA_flow_nominal*(TASup_nominal-THeaRecLvg-dTFan)*1006) "Cooling load of coil, taking into account economizer, and increased due to latent heat removal"; ///////////////////////////////////////////////////////// // Water temperatures and mass flow rates parameter Modelica.SIunits.Temperature TWSup_nominal = 273.15+16 "Water supply temperature"; parameter Modelica.SIunits.Temperature TWRet_nominal = 273.15+12 "Water return temperature"; parameter Modelica.SIunits.MassFlowRate mW_flow_nominal= QCoiC_flow_nominal/(TWRet_nominal-TWSup_nominal)/4200 "Nominal water mass flow rate"; ///////////////////////////////////////////////////////// // HVAC models Modelica.Blocks.Sources.Constant zero(k=0) "Zero output signal"; Movers.FlowControlled_m_flow fan( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, allowFlowReversal=allowFlowReversal, nominalValuesDefineDefaultPressureCurve=true) "Supply air fan"; HeatExchangers.ConstantEffectiveness hex( redeclare package Medium1 = MediumA, redeclare package Medium2 = MediumA, m1_flow_nominal=mA_flow_nominal, m2_flow_nominal=mA_flow_nominal, dp1_nominal=200, dp2_nominal=200, eps=eps, allowFlowReversal1=allowFlowReversal, allowFlowReversal2=allowFlowReversal) "Heat recovery"; replaceable Annex60.Fluid.HeatExchangers.ConstantEffectiveness cooCoi( dp1_nominal=6000, dp2_nominal=200, show_T=true, allowFlowReversal1=allowFlowReversal, allowFlowReversal2=allowFlowReversal) constrainedby Annex60.Fluid.Interfaces.PartialFourPortInterface( redeclare package Medium1 = MediumW, redeclare package Medium2 = MediumA, m1_flow_nominal=mW_flow_nominal, m2_flow_nominal=mA_flow_nominal) "Cooling coil (with sensible cooling only)"; Annex60.Fluid.Sources.Outside out( redeclare package Medium = MediumA, nPorts=2) "Outside air boundary condition"; Sources.MassFlowSource_T souWat( redeclare package Medium = MediumW, nPorts=1, use_m_flow_in=true, T=TWSup_nominal) "Source for water flow rate"; Sources.FixedBoundary sinWat( redeclare package Medium = MediumW, nPorts=1) "Sink for water circuit"; Modelica.Blocks.Sources.Constant mAir_flow(k=mA_flow_nominal) "Fan air flow rate"; Sensors.TemperatureTwoPort senTemHXOut( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, allowFlowReversal=allowFlowReversal) "Temperature sensor for heat recovery outlet on supply side"; Sensors.TemperatureTwoPort senTemSupAir( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, allowFlowReversal=allowFlowReversal) "Temperature sensor for supply air"; Modelica.Blocks.Logical.OnOffController con(bandwidth=1) "Controller for coil water flow rate"; Modelica.Blocks.Sources.Constant TRooSetPoi(k=TRooSet) "Room temperature set point"; Modelica.Blocks.Math.BooleanToReal mWat_flow( realTrue = 0, realFalse = mW_flow_nominal) "Conversion from boolean to real for water flow rate"; BoundaryConditions.WeatherData.ReaderTMY3 weaDat( pAtmSou=Annex60.BoundaryConditions.Types.DataSource.Parameter, TDryBul=TOut_nominal, filNam="modelica://Annex60/Resources/weatherdata/USA_IL_Chicago-OHare.Intl.AP.725300_TMY3.mos", TDryBulSou=Annex60.BoundaryConditions.Types.DataSource.File, computeWetBulbTemperature=false) "Weather data reader"; BoundaryConditions.WeatherData.Bus weaBus "Weather data bus"; Modelica.Blocks.Interfaces.RealOutput TOut(final unit="K") "Outdoor temperature"; FixedResistances.PressureDrop resSup1( redeclare package Medium = MediumA, linearized=true, dp_nominal=10, m_flow_nominal=mA_flow_nominal) "Fixed resistance for supply air inlet"; FixedResistances.PressureDrop resRet1( redeclare package Medium = MediumA, dp_nominal=200, linearized=true, m_flow_nominal=mA_flow_nominal) "Fixed resistance for return air duct"; equation connect(zero.y, QGaiRad_flow); connect(zero.y, QGaiSenCon_flow); connect(zero.y, QGaiLat_flow); connect(out.ports[1],hex. port_a1); connect(out.ports[2],hex. port_b2); connect(souWat.ports[1],cooCoi. port_a1); connect(fan.m_flow_in,mAir_flow. y); connect(hex.port_b1,senTemHXOut. port_a); connect(senTemHXOut.port_b,cooCoi. port_a2); connect(cooCoi.port_b2,senTemSupAir. port_a); connect(senTemSupAir.port_b,fan. port_a); connect(TRooSetPoi.y,con. reference); connect(con.y,mWat_flow. u); connect(mWat_flow.y,souWat. m_flow_in); connect(weaDat.weaBus,weaBus); connect(TOut,weaBus. TDryBul); connect(sinWat.ports[1], cooCoi.port_b1); connect(con.u, hvacAda.TAirZon[1]); connect(resSup1.port_b, hvacAda.ports[1]); connect(resRet1.port_a, hvacAda.ports[2]); connect(fan.port_b, resSup1.port_a); connect(resRet1.port_b, hex.port_a2); connect(out.weaBus, weaBus); end HVACZone;

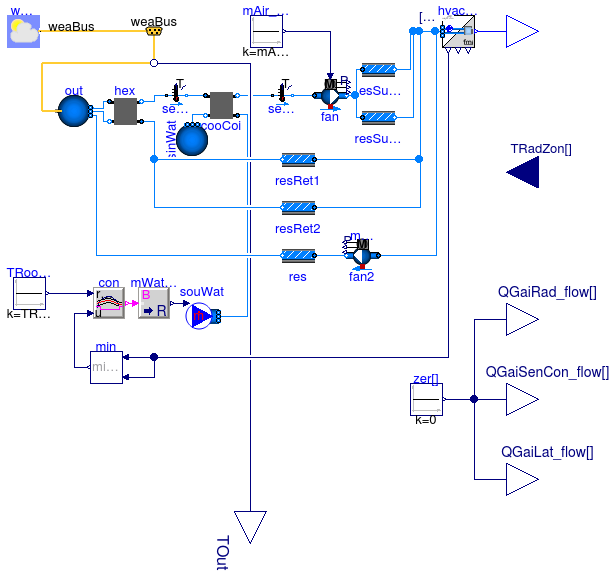

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HVACZones

Declaration of an FMU that exports a simple convective only HVAC system for two zones

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HVACZones

Information

This example demonstrates how to export a model of an HVAC system that only provides convective cooling to two thermal zones. The example is similar to Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HVACZone except that is serves two thermal zones rather than one.

The example extends from Annex60.Fluid.FMI.ExportContainers.HVACZones which provides the input and output signals that are needed to interface the acausal HVAC system model with causal connectors of FMI. The instance hvacAda is the HVAC adapter that contains on the left a fluid port, and on the right signal ports which are then used to connect at the top-level of the model to signal ports which are exposed at the FMU interface.

Extends from Annex60.Fluid.FMI.ExportContainers.HVACZones (Partial block to export an HVAC system that has no radiative component and that serves multiple zones as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Integer	nZon	2	Number of thermal zones served by the HVAC system
Integer	nPorts	3	Number of fluid ports for each zone (must be the same for every zone)
replaceable package MediumA		Annex60.Media.Air	Medium for air
replaceable package MediumW		Annex60.Media.Water	Medium for water
Real	eps	0.8	Heat recovery effectiveness
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
Temperature	THeaRecLvg	TOut_nominal - eps*(TOut_nom...	Air temperature leaving the heat recovery [K]
Real	UA	10E3	Average UA-value of the room [W/K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - UA/30*(TOut_...	Nominal cooling load of the room [W]
MassFlowRate	mA_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]
TemperatureDifference	dTFan	2	Estimated temperature raise across fan that needs to be made up by the cooling coil [K]
HeatFlowRate	QCoiC_flow_nominal	4*(QRooC_flow_nominal + mA_f...	Cooling load of coil, taking into account economizer, and increased due to latent heat removal [W]
Temperature	TWSup_nominal	273.15 + 16	Water supply temperature [K]
Temperature	TWRet_nominal	273.15 + 12	Water return temperature [K]
MassFlowRate	mW_flow_nominal	QCoiC_flow_nominal/(TWRet_no...	Nominal water mass flow rate [kg/s]
ConstantEffectiveness	cooCoi	redeclare Annex60.Fluid.Heat...	Cooling coil (with sensible cooling only)
Assumptions
Boolean	allowFlowReversal	false	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Outlet	fluPor[nZon, nPorts]	Fluid connectors
input RealInput	TRadZon[nZon]	Radiative temperature of the zone [K]
output RealOutput	QGaiRad_flow[nZon]	Radiant heat input into the zones (positive if heat gain) [W]
output RealOutput	QGaiSenCon_flow[nZon]	Convective sensible heat input into the zones (positive if heat gain) [W]
output RealOutput	QGaiLat_flow[nZon]	Latent heat input into the zones (positive if heat gain) [W]
replaceable package MediumA		Medium for air
replaceable package MediumW		Medium for water
Bus	weaBus	Weather data bus
output RealOutput	TOut	Outdoor temperature [K]

Modelica definition

block HVACZones "Declaration of an FMU that exports a simple convective only HVAC system for two zones" import Annex60; extends Annex60.Fluid.FMI.ExportContainers.HVACZones( redeclare final package Medium = MediumA, nZon = 2, nPorts = 3); replaceable package MediumA = Annex60.Media.Air "Medium for air"; replaceable package MediumW = Annex60.Media.Water "Medium for water"; parameter Boolean allowFlowReversal = false "= true to allow flow reversal, false restricts to design direction (inlet -> outlet)"; // parameter Modelica.SIunits.Volume V=6*10*3 "Room volume"; ////////////////////////////////////////////////////////// // Heat recovery effectiveness parameter Real eps = 0.8 "Heat recovery effectiveness"; ///////////////////////////////////////////////////////// // Air temperatures at design conditions parameter Modelica.SIunits.Temperature TASup_nominal = 273.15+18 "Nominal air temperature supplied to room"; parameter Modelica.SIunits.Temperature TRooSet = 273.15+24 "Nominal room air temperature"; parameter Modelica.SIunits.Temperature TOut_nominal = 273.15+30 "Design outlet air temperature"; parameter Modelica.SIunits.Temperature THeaRecLvg= TOut_nominal - eps*(TOut_nominal-TRooSet) "Air temperature leaving the heat recovery"; ///////////////////////////////////////////////////////// // Cooling loads and air mass flow rates parameter Real UA(unit="W/K") = 10E3 "Average UA-value of the room"; parameter Modelica.SIunits.HeatFlowRate QRooInt_flow= 1000 "Internal heat gains of the room"; parameter Modelica.SIunits.HeatFlowRate QRooC_flow_nominal= -QRooInt_flow-UA/30*(TOut_nominal-TRooSet) "Nominal cooling load of the room"; parameter Modelica.SIunits.MassFlowRate mA_flow_nominal= 1.3*QRooC_flow_nominal/1006/(TASup_nominal-TRooSet) "Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback"; parameter Modelica.SIunits.TemperatureDifference dTFan = 2 "Estimated temperature raise across fan that needs to be made up by the cooling coil"; parameter Modelica.SIunits.HeatFlowRate QCoiC_flow_nominal=4* (QRooC_flow_nominal + mA_flow_nominal*(TASup_nominal-THeaRecLvg-dTFan)*1006) "Cooling load of coil, taking into account economizer, and increased due to latent heat removal"; ///////////////////////////////////////////////////////// // Water temperatures and mass flow rates parameter Modelica.SIunits.Temperature TWSup_nominal = 273.15+16 "Water supply temperature"; parameter Modelica.SIunits.Temperature TWRet_nominal = 273.15+12 "Water return temperature"; parameter Modelica.SIunits.MassFlowRate mW_flow_nominal= QCoiC_flow_nominal/(TWRet_nominal-TWSup_nominal)/4200 "Nominal water mass flow rate"; ///////////////////////////////////////////////////////// // HVAC models Modelica.Blocks.Sources.Constant zer[nZon](each k=0) "Zero output signal"; Movers.FlowControlled_m_flow fan( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, allowFlowReversal=allowFlowReversal) "Supply air fan"; HeatExchangers.ConstantEffectiveness hex( redeclare package Medium1 = MediumA, redeclare package Medium2 = MediumA, m1_flow_nominal=mA_flow_nominal, m2_flow_nominal=mA_flow_nominal, dp1_nominal=200, dp2_nominal=200, eps=eps, allowFlowReversal1=allowFlowReversal, allowFlowReversal2=allowFlowReversal) "Heat recovery"; replaceable Annex60.Fluid.HeatExchangers.ConstantEffectiveness cooCoi( dp1_nominal=6000, dp2_nominal=200, show_T=true, allowFlowReversal1=allowFlowReversal, allowFlowReversal2=allowFlowReversal) constrainedby Annex60.Fluid.Interfaces.PartialFourPortInterface( redeclare package Medium1 = MediumW, redeclare package Medium2 = MediumA, m1_flow_nominal=mW_flow_nominal, m2_flow_nominal=mA_flow_nominal) "Cooling coil (with sensible cooling only)"; Annex60.Fluid.Sources.Outside out( redeclare package Medium = MediumA, nPorts=3) "Outside air boundary condition"; Sources.MassFlowSource_T souWat( nPorts=1, redeclare package Medium = MediumW, use_m_flow_in=true, T=TWSup_nominal) "Source for water flow rate"; Sources.FixedBoundary sinWat( redeclare package Medium = MediumW, nPorts=1) "Sink for water circuit"; Modelica.Blocks.Sources.Constant mAir_flow(k=mA_flow_nominal) "Fan air flow rate"; Sensors.TemperatureTwoPort senTemHXOut( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, allowFlowReversal=allowFlowReversal) "Temperature sensor for heat recovery outlet on supply side"; Sensors.TemperatureTwoPort senTemSupAir( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, allowFlowReversal=allowFlowReversal) "Temperature sensor for supply air"; Modelica.Blocks.Logical.OnOffController con(bandwidth=1) "Controller for coil water flow rate"; Modelica.Blocks.Sources.Constant TRooSetPoi(k=TRooSet) "Room temperature set point"; Modelica.Blocks.Math.BooleanToReal mWat_flow( realTrue = 0, realFalse = mW_flow_nominal) "Conversion from boolean to real for water flow rate"; BoundaryConditions.WeatherData.ReaderTMY3 weaDat( pAtmSou=Annex60.BoundaryConditions.Types.DataSource.Parameter, TDryBul=TOut_nominal, filNam="modelica://Annex60/Resources/weatherdata/USA_IL_Chicago-OHare.Intl.AP.725300_TMY3.mos", TDryBulSou=Annex60.BoundaryConditions.Types.DataSource.File, computeWetBulbTemperature=false) "Weather data reader"; BoundaryConditions.WeatherData.Bus weaBus "Weather data bus"; Modelica.Blocks.Interfaces.RealOutput TOut(final unit="K") "Outdoor temperature"; Modelica.Blocks.Math.Min min; Movers.FlowControlled_m_flow fan2( redeclare package Medium = MediumA, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, allowFlowReversal=allowFlowReversal, m_flow_nominal=mA_flow_nominal/10, inputType=Annex60.Fluid.Types.InputType.Constant) "Supply air fan that extracts a constant amount of outside air"; Annex60.Fluid.FixedResistances.PressureDrop res( redeclare package Medium = MediumA, m_flow_nominal=0.1*mA_flow_nominal, dp_nominal=200, linearized=true) "Fixed resistance for exhaust air duct"; Annex60.Fluid.FixedResistances.PressureDrop resSup1( redeclare package Medium = MediumA, linearized=true, m_flow_nominal=0.5*mA_flow_nominal, dp_nominal=10) "Fixed resistance for supply air inlet"; Annex60.Fluid.FixedResistances.PressureDrop resSup2( redeclare package Medium = MediumA, linearized=true, m_flow_nominal=0.5*mA_flow_nominal, dp_nominal=10) "Fixed resistance for supply air inlet"; Annex60.Fluid.FixedResistances.PressureDrop resRet1( redeclare package Medium = MediumA, dp_nominal=200, linearized=true, m_flow_nominal=0.5*mA_flow_nominal) "Fixed resistance for return air duct"; Annex60.Fluid.FixedResistances.PressureDrop resRet2( redeclare package Medium = MediumA, dp_nominal=200, linearized=true, m_flow_nominal=0.5*mA_flow_nominal) "Fixed resistance for return air duct"; equation connect(zer.y, QGaiRad_flow); connect(zer.y, QGaiSenCon_flow); connect(zer.y, QGaiLat_flow); connect(out.ports[1],hex. port_a1); connect(out.ports[2],hex. port_b2); connect(souWat.ports[1],cooCoi. port_a1); connect(fan.m_flow_in,mAir_flow. y); connect(hex.port_b1,senTemHXOut. port_a); connect(senTemHXOut.port_b,cooCoi. port_a2); connect(cooCoi.port_b2,senTemSupAir. port_a); connect(senTemSupAir.port_b,fan. port_a); connect(TRooSetPoi.y,con. reference); connect(con.y,mWat_flow. u); connect(mWat_flow.y,souWat. m_flow_in); connect(weaDat.weaBus,weaBus); connect(TOut,weaBus. TDryBul); connect(sinWat.ports[1], cooCoi.port_b1); connect(min.y, con.u); connect(fan2.port_b, res.port_a); connect(res.port_b, out.ports[3]); connect(fan.port_b, resSup1.port_a); connect(fan.port_b, resSup2.port_a); connect(resSup1.port_b, hvacAda[1].ports[1]); connect(resSup2.port_b, hvacAda[2].ports[1]); connect(hvacAda[1].ports[3], fan2.port_a); connect(hvacAda[2].ports[3], fan2.port_a); connect(hvacAda[1].TAirZon[1], min.u1); connect(hvacAda[2].TAirZon[1], min.u2); connect(resRet1.port_b, hex.port_a2); connect(resRet2.port_b, hex.port_a2); connect(resRet1.port_a, hvacAda[1].ports[2]); connect(resRet2.port_a, hvacAda[2].ports[2]); connect(out.weaBus, weaBus); end HVACZones;

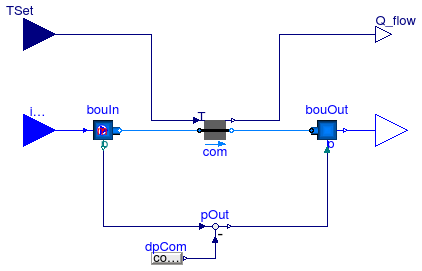

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HeaterCooler_T

Declaration of an FMU that exports an ideal heater or cooler with prescribed outlet temperature

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HeaterCooler_T

Information

This example demonstrates how to export an FMU with a heater that takes as an input signal the leaving fluid temperature. The FMU has an instance of Annex60.Fluid.HeatExchangers.HeaterCooler_T.

Extends from Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort (Container to export thermofluid flow models with two ports as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
HeatFlowRate	Q_flow_maxHeat	Modelica.Constants.inf	Maximum heat flow rate for heating (positive) [W]
HeatFlowRate	Q_flow_maxCool	-Modelica.Constants.inf	Maximum heat flow rate for cooling (negative) [W]
MassFlowRate	m_flow_nominal	0.01	Nominal mass flow rate [kg/s]
PressureDifference	dp_nominal	0	Pressure [Pa]
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet
input RealInput	TSet	Set point temperature of the fluid that leaves port_b [K]
output RealOutput	Q_flow	Heat added to the fluid (if flow is from port_a to port_b) [W]

Modelica definition

block HeaterCooler_T "Declaration of an FMU that exports an ideal heater or cooler with prescribed outlet temperature" extends Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort( redeclare replaceable package Medium = Annex60.Media.Air, redeclare final Annex60.Fluid.HeatExchangers.HeaterCooler_T com( final m_flow_nominal=m_flow_nominal, final dp_nominal=if use_p_in then dp_nominal else 0, final Q_flow_maxHeat=Q_flow_maxHeat, final Q_flow_maxCool=Q_flow_maxCool, final energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState)); parameter Modelica.SIunits.HeatFlowRate Q_flow_maxHeat=Modelica.Constants.inf "Maximum heat flow rate for heating (positive)"; parameter Modelica.SIunits.HeatFlowRate Q_flow_maxCool=-Modelica.Constants.inf "Maximum heat flow rate for cooling (negative)"; parameter Modelica.SIunits.MassFlowRate m_flow_nominal=0.01 "Nominal mass flow rate"; parameter Modelica.SIunits.PressureDifference dp_nominal(displayUnit="Pa")=0 "Pressure"; Modelica.Blocks.Interfaces.RealInput TSet(unit="K", displayUnit="degC") "Set point temperature of the fluid that leaves port_b"; Modelica.Blocks.Interfaces.RealOutput Q_flow(unit="W") "Heat added to the fluid (if flow is from port_a to port_b)"; equation connect(com.TSet, TSet); connect(com.Q_flow, Q_flow); end HeaterCooler_T;

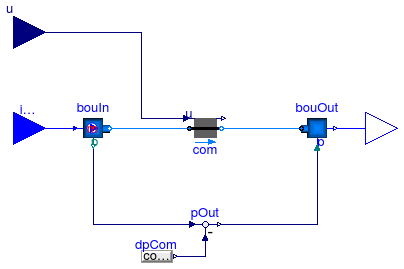

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HeaterCooler_u

Declaration of an FMU that exports an ideal heater or cooler with prescribed heat flow rate

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.HeaterCooler_u

Information

This example demonstrates how to export an FMU with a heater that takes as an input signal the normalized heat flow rate. The FMU has an instance of Annex60.Fluid.HeatExchangers.HeaterCooler_u.

The mass dynamics has been set to massDynamics=Modelica.Fluid.Types.Dynamics.SteadyState. See the user's guide for the rationale.

Extends from Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort (Container to export thermofluid flow models with two ports as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
MassFlowRate	m_flow_nominal	0.01	Nominal mass flow rate [kg/s]
PressureDifference	dp_nominal	0	Pressure [Pa]
HeatFlowRate	Q_flow_nominal	100	Heat flow rate at u=1, positive for heating [W]
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet
input RealInput	u	Control input [1]

Modelica definition

block HeaterCooler_u "Declaration of an FMU that exports an ideal heater or cooler with prescribed heat flow rate" extends Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort( redeclare replaceable package Medium = Annex60.Media.Air, redeclare final Annex60.Fluid.HeatExchangers.HeaterCooler_u com( final m_flow_nominal=m_flow_nominal, final dp_nominal=if use_p_in then dp_nominal else 0, final Q_flow_nominal=Q_flow_nominal, massDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState)); parameter Modelica.SIunits.MassFlowRate m_flow_nominal=0.01 "Nominal mass flow rate"; parameter Modelica.SIunits.PressureDifference dp_nominal(displayUnit="Pa")=0 "Pressure"; parameter Modelica.SIunits.HeatFlowRate Q_flow_nominal=100 "Heat flow rate at u=1, positive for heating"; Modelica.Blocks.Interfaces.RealInput u(min=0, max=1, unit="1") "Control input"; equation connect(com.u, u); end HeaterCooler_u;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.Humidifier_u

Declaration of an FMU that exports an ideal humidifier

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.Humidifier_u

Information

This example demonstrates how to export an FMU with a humidifier that takes as an input signal the normalized mass flow rate of water that will be added to the medium. The FMU has an instance of Annex60.Fluid.MassExchangers.Humidifier_u.

The mass dynamics has been set to massDynamics=Modelica.Fluid.Types.Dynamics.SteadyState. See the user's guide for the rationale.

Extends from Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort (Container to export thermofluid flow models with two ports as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
MassFlowRate	m_flow_nominal	0.01	Nominal mass flow rate [kg/s]
PressureDifference	dp_nominal	0	Pressure [Pa]
Temperature	T	293.15	Temperature of water that is added to the fluid stream (used if use_T_in=false) [K]
MassFlowRate	mWat_flow_nominal	0.01*0.005	Water mass flow rate at u=1, positive for humidification [kg/s]
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet
input RealInput	u	Control input [1]

Modelica definition

block Humidifier_u "Declaration of an FMU that exports an ideal humidifier" extends Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort( redeclare replaceable package Medium = Annex60.Media.Air, redeclare final Annex60.Fluid.MassExchangers.Humidifier_u com( final m_flow_nominal=m_flow_nominal, final dp_nominal=if use_p_in then dp_nominal else 0, final mWat_flow_nominal=mWat_flow_nominal, final T=T, massDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, final energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState)); parameter Modelica.SIunits.MassFlowRate m_flow_nominal=0.01 "Nominal mass flow rate"; parameter Modelica.SIunits.PressureDifference dp_nominal(displayUnit="Pa")=0 "Pressure"; parameter Modelica.SIunits.Temperature T = 293.15 "Temperature of water that is added to the fluid stream (used if use_T_in=false)"; parameter Modelica.SIunits.MassFlowRate mWat_flow_nominal=0.01*0.005 "Water mass flow rate at u=1, positive for humidification"; Modelica.Blocks.Interfaces.RealInput u(min=0, max=1, unit="1") "Control input"; equation connect(com.u, u); end Humidifier_u;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.IdealSource_m_flow

Declaration of an FMU that exports a mass flow source and sink

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.IdealSource_m_flow

Information

This example demonstrates how to export an FMU that sets the mass flow rate.

Extends from Annex60.Fluid.FMI.ExportContainers.PartialTwoPort (Partial block to be used as a container to export a thermofluid flow model with two ports).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet
input RealInput	m_flow_in	Prescribed mass flow rate [kg/s]

Modelica definition

block IdealSource_m_flow "Declaration of an FMU that exports a mass flow source and sink" extends Annex60.Fluid.FMI.ExportContainers.PartialTwoPort( redeclare replaceable package Medium = Annex60.Media.Air); Modelica.Blocks.Interfaces.RealInput m_flow_in(final unit="kg/s") "Prescribed mass flow rate"; equation assert(abs(inlet.m_flow-outlet.m_flow) < 1E-2, "The mass flow rate of port_a and port_b is not conserved. This indicates a wrong configuration of your system model."); outlet.m_flow = m_flow_in; // We use connect statements // because outlet.backward and inlet.backward // is removed if allowFlowReversal=false. // The connect is applied on the components of the port // to avoid also connecting the mass flow rate which would // yield an overdetermined system of equations. connect(inlet.forward, outlet.forward); connect(outlet.backward, inlet.backward); connect(outlet.p, inlet.p); end IdealSource_m_flow;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.MixingVolume

Declaration of an FMU that exports a control volume

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.MixingVolume

Information

This example demonstrates how to export an FMU with a control volume. The FMU has an instance of Annex60.Fluid.MixingVolumes.MixingVolume.

The mass dynamics has been set to massDynamics=Modelica.Fluid.Types.Dynamics.SteadyState. See the user's guide for the rationale.

Extends from Annex60.Fluid.FMI.ExportContainers.PartialTwoPort (Partial block to be used as a container to export a thermofluid flow model with two ports).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
Volume	V	1	Volume [m3]
MassFlowRate	m_flow_nominal	0.01	Nominal mass flow rate [kg/s]
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet

Modelica definition

block MixingVolume "Declaration of an FMU that exports a control volume" extends Annex60.Fluid.FMI.ExportContainers.PartialTwoPort( redeclare package Medium = Annex60.Media.Air); parameter Modelica.SIunits.Volume V=1 "Volume"; parameter Modelica.SIunits.MassFlowRate m_flow_nominal=0.01 "Nominal mass flow rate"; protected Annex60.Fluid.FMI.Adaptors.Inlet bouIn( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal) "Boundary model for inlet"; Annex60.Fluid.FMI.Adaptors.Outlet bouOut( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal) "Boundary component for outlet"; Annex60.Fluid.MixingVolumes.MixingVolume vol( redeclare final package Medium = Medium, final m_flow_nominal=m_flow_nominal, final allowFlowReversal=allowFlowReversal, final V=V, nPorts=2, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, massDynamics=Modelica.Fluid.Types.Dynamics.SteadyState) "Control volume"; equation connect(inlet, bouIn.inlet); connect(bouOut.outlet, outlet); connect(bouIn.p, bouOut.p); connect(bouIn.port_b, vol.ports[1]); connect(vol.ports[2], bouOut.port_a); end MixingVolume;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.PressureDrop

Declaration of an FMU that exports a fixed resistance

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.PressureDrop

Information

This example demonstrates how to export an FMU with a fluid flow component. The FMU has an instance of Annex60.Fluid.FixedResistances.PressureDrop.

Extends from Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort (Container to export thermofluid flow models with two ports as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
MassFlowRate	m_flow_nominal	0.01	Nominal mass flow rate [kg/s]
PressureDifference	dp_nominal	100	Pressure drop at nominal mass flow rate [Pa]
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet

Modelica definition

block PressureDrop "Declaration of an FMU that exports a fixed resistance" extends Annex60.Fluid.FMI.ExportContainers.ReplaceableTwoPort( redeclare replaceable package Medium = Annex60.Media.Air, redeclare final Annex60.Fluid.FixedResistances.PressureDrop com(final m_flow_nominal= m_flow_nominal, final dp_nominal=if use_p_in then dp_nominal else 0)); parameter Modelica.SIunits.MassFlowRate m_flow_nominal=0.01 "Nominal mass flow rate"; parameter Modelica.SIunits.PressureDifference dp_nominal(displayUnit="Pa")=100 "Pressure drop at nominal mass flow rate"; end PressureDrop;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.ResistanceVolume

Declaration of an FMU that exports a flow resistance and control volume

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.ResistanceVolume

Information

This example demonstrates how to export an FMU with a flow resistance and a control volume. The FMU has an instance of Annex60.Fluid.FixedResistances.PressureDrop and Annex60.Fluid.MixingVolumes.MixingVolume.

The mass dynamics has been set to massDynamics=Modelica.Fluid.Types.Dynamics.SteadyState. See the user's guide for the rationale.

Extends from Annex60.Fluid.FMI.ExportContainers.PartialTwoPort (Partial block to be used as a container to export a thermofluid flow model with two ports).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
Volume	V	1	Volume [m3]
MassFlowRate	m_flow_nominal	0.01	Nominal mass flow rate [kg/s]
PressureDifference	dp_nominal	100	Nominal pressure drop [Pa]
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet

Modelica definition

block ResistanceVolume "Declaration of an FMU that exports a flow resistance and control volume" extends Annex60.Fluid.FMI.ExportContainers.PartialTwoPort( redeclare package Medium = Annex60.Media.Air); parameter Modelica.SIunits.Volume V=1 "Volume"; parameter Modelica.SIunits.MassFlowRate m_flow_nominal=0.01 "Nominal mass flow rate"; parameter Modelica.SIunits.PressureDifference dp_nominal=100 "Nominal pressure drop"; Modelica.Blocks.Sources.RealExpression dpCom(y=res.port_a.p - res.port_b.p) if use_p_in "Pressure drop of the component"; protected Annex60.Fluid.FMI.Adaptors.Inlet bouIn( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal, final use_p_in=use_p_in) "Boundary model for inlet"; Annex60.Fluid.FMI.Adaptors.Outlet bouOut( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal, final use_p_in=use_p_in) "Boundary component for outlet"; Modelica.Blocks.Math.Feedback pOut if use_p_in "Pressure at component outlet"; FixedResistances.PressureDrop res( redeclare final package Medium = Medium, final m_flow_nominal=m_flow_nominal, final dp_nominal=if use_p_in then dp_nominal else 0, final allowFlowReversal=allowFlowReversal) "Flow resistance"; Annex60.Fluid.MixingVolumes.MixingVolume vol( nPorts=2, redeclare final package Medium = Medium, final m_flow_nominal=m_flow_nominal, final allowFlowReversal=allowFlowReversal, final V=V, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, massDynamics=Modelica.Fluid.Types.Dynamics.SteadyState) "Control volume"; equation connect(inlet, bouIn.inlet); connect(bouOut.outlet, outlet); connect(pOut.u1, bouIn.p); connect(pOut.y, bouOut.p); connect(res.port_b, vol.ports[1]); connect(bouIn.port_b, res.port_a); connect(dpCom.y, pOut.u2); connect(vol.ports[2], bouOut.port_a); end ResistanceVolume;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.ThermalZone

Declaration of an FMU that exports a thermal zone

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.ThermalZone

Information

This example demonstrates how to export a model that contains one thermal zone with convective heat input from the HVAC system only. The thermal zone is connected to an adaptor so that it can be coupled to an air-based HVAC system. The thermal zone is taken from Annex60.Examples.Tutorial.SpaceCooling.System3 .

The example extends from Annex60.Fluid.FMI.ExportContainers.ThermalZone which provides the input and output signals that are needed to interface the acausal thermal zone model with causal connectors of FMI. The instance theZonAda is the thermal zone adaptor that contains on the right a fluid port, and on the left signal ports which are then used to connect at the top-level of the model to signal ports which are exposed at the FMU interface.

Extends from Annex60.Fluid.FMI.ExportContainers.ThermalZone (Partial block to export a model of a thermal zone as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium model
Integer	nPorts	2	Number of fluid ports
replaceable package MediumA		Annex60.Media.Air	Medium for air
Volume	V	6103	Room volume [m3]
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - 10E3/30*(TOu...	Nominal cooling load of the room [W]
MassFlowRate	mA_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]

Connectors

Type	Name	Description
replaceable package Medium		Medium model
Inlet	fluPor[nPorts]	Fluid connector
replaceable package MediumA		Medium for air
Bus	weaBus	Weather data bus
output RealOutput	TOut	Outdoor temperature [K]
output RealOutput	TRad	Radiative temperature [K]

Modelica definition

model ThermalZone "Declaration of an FMU that exports a thermal zone" extends Annex60.Fluid.FMI.ExportContainers.ThermalZone( redeclare final package Medium = MediumA, nPorts = 2); replaceable package MediumA = Annex60.Media.Air "Medium for air"; parameter Modelica.SIunits.Volume V=6*10*3 "Room volume"; ///////////////////////////////////////////////////////// // Air temperatures at design conditions parameter Modelica.SIunits.Temperature TASup_nominal = 273.15+18 "Nominal air temperature supplied to room"; parameter Modelica.SIunits.Temperature TRooSet = 273.15+24 "Nominal room air temperature"; parameter Modelica.SIunits.Temperature TOut_nominal = 273.15+30 "Design outlet air temperature"; ///////////////////////////////////////////////////////// // Cooling loads and air mass flow rates parameter Modelica.SIunits.HeatFlowRate QRooInt_flow= 1000 "Internal heat gains of the room"; parameter Modelica.SIunits.HeatFlowRate QRooC_flow_nominal= -QRooInt_flow-10E3/30*(TOut_nominal-TRooSet) "Nominal cooling load of the room"; parameter Modelica.SIunits.MassFlowRate mA_flow_nominal= 1.3*QRooC_flow_nominal/1006/(TASup_nominal-TRooSet) "Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback"; BoundaryConditions.WeatherData.ReaderTMY3 weaDat( pAtmSou=Annex60.BoundaryConditions.Types.DataSource.Parameter, TDryBul=TOut_nominal, filNam="modelica://Annex60/Resources/weatherdata/USA_IL_Chicago-OHare.Intl.AP.725300_TMY3.mos", TDryBulSou=Annex60.BoundaryConditions.Types.DataSource.File, computeWetBulbTemperature=false) "Weather data reader"; BoundaryConditions.WeatherData.Bus weaBus "Weather data bus"; Modelica.Blocks.Interfaces.RealOutput TOut(final unit="K") "Outdoor temperature"; Modelica.Blocks.Interfaces.RealOutput TRad(final unit="K") "Radiative temperature"; Modelica.Thermal.HeatTransfer.Sources.PrescribedTemperature TAirOut "Outside air temperature"; Modelica.Thermal.HeatTransfer.Components.ThermalConductor theCon(G=10000/30) "Thermal conductance with the ambient"; Modelica.Thermal.HeatTransfer.Sources.FixedHeatFlow preHea(Q_flow= QRooInt_flow) "Prescribed heat flow"; MixingVolumes.MixingVolumeMoistAir vol( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, V=V, mSenFac=3, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, nPorts=2); Modelica.Blocks.Sources.Constant mWat_flow(k=0.0) "mass flow rate"; Modelica.Blocks.Sources.Constant TWat(k=280.15) "Water temperature"; Sensors.MassFlowRate senMasFlo[nPorts](redeclare final package Medium = MediumA) "Mass flow rate sensor to connect thermal adapter with thermal zone."; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor temSen "Temperature sensor (that approximates the radiative temperature by the air temperature)"; equation connect(weaDat.weaBus,weaBus); connect(theCon.port_b,vol. heatPort); connect(preHea.port,vol. heatPort); connect(TAirOut.T, weaBus.TDryBul); connect(TAirOut.port, theCon.port_a); connect(theZonAda.heaPorAir, vol.heatPort); connect(TOut, weaBus.TDryBul); connect(vol.mWat_flow, mWat_flow.y); connect(TWat.y, vol.TWat); connect(theZonAda.ports, senMasFlo.port_a); connect(senMasFlo.port_b, vol.ports[1:2]); connect(temSen.port, vol.heatPort); connect(temSen.T, TRad); end ThermalZone;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.ThermalZones

Declaration of an FMU that exports multiple thermal zones

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.ThermalZones

Information

This example demonstrates how to export a model that contains two thermal zones with convective heat input from the HVAC system only. The thermal zones are connected to an adaptor so that they can be coupled to an air-based HVAC system. The thermal zone is taken from Annex60.Examples.Tutorial.SpaceCooling.System3 .

The example extends from Annex60.Fluid.FMI.ExportContainers.ThermalZones which provides the input and output signals that are needed to interface the acausal thermal zone models with causal connectors of FMI. The instance theZonAda is the thermal zone adaptor that contains on the right a fluid port, and on the left signal ports which are then used to connect at the top-level of the model to signal ports which are exposed at the FMU interface.

Extends from Annex60.Fluid.FMI.ExportContainers.ThermalZones (Partial block to export a model of multiple thermal zones as an FMU).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium model
Integer	nZon	2	Number of thermal zones in this container
Integer	nPorts	3	Number of fluid ports for each zone (must be the same for every zone)
replaceable package MediumA		Annex60.Media.Air	Medium for air
Volume	V	6103	Room volume [m3]
Temperature	TASup_nominal	273.15 + 18	Nominal air temperature supplied to room [K]
Temperature	TRooSet	273.15 + 24	Nominal room air temperature [K]
Temperature	TOut_nominal	273.15 + 30	Design outlet air temperature [K]
HeatFlowRate	QRooInt_flow	1000	Internal heat gains of the room [W]
HeatFlowRate	QRooC_flow_nominal	-QRooInt_flow - 10E3/30*(TOu...	Nominal cooling load of the room [W]
MassFlowRate	mA_flow_nominal	1.3*QRooC_flow_nominal/1006/...	Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback [kg/s]

Connectors

Type	Name	Description
replaceable package Medium		Medium model
Inlet	fluPor[nZon, nPorts]	Fluid connectors
replaceable package MediumA		Medium for air
Bus	weaBus	Weather data bus
output RealOutput	TOut	Outdoor temperature [K]
output RealOutput	TRad1	Radiative temperature [K]
output RealOutput	TRad2	Radiative temperature [K]

Modelica definition

model ThermalZones "Declaration of an FMU that exports multiple thermal zones" extends Annex60.Fluid.FMI.ExportContainers.ThermalZones( redeclare final package Medium = MediumA, nPorts = 3, nZon = 2); replaceable package MediumA = Annex60.Media.Air "Medium for air"; parameter Modelica.SIunits.Volume V=6*10*3 "Room volume"; ///////////////////////////////////////////////////////// // Air temperatures at design conditions parameter Modelica.SIunits.Temperature TASup_nominal = 273.15+18 "Nominal air temperature supplied to room"; parameter Modelica.SIunits.Temperature TRooSet = 273.15+24 "Nominal room air temperature"; parameter Modelica.SIunits.Temperature TOut_nominal = 273.15+30 "Design outlet air temperature"; ///////////////////////////////////////////////////////// // Cooling loads and air mass flow rates parameter Modelica.SIunits.HeatFlowRate QRooInt_flow= 1000 "Internal heat gains of the room"; parameter Modelica.SIunits.HeatFlowRate QRooC_flow_nominal= -QRooInt_flow-10E3/30*(TOut_nominal-TRooSet) "Nominal cooling load of the room"; parameter Modelica.SIunits.MassFlowRate mA_flow_nominal= 1.3*QRooC_flow_nominal/1006/(TASup_nominal-TRooSet) "Nominal air mass flow rate, increased by factor 1.3 to allow for recovery after temperature setback"; BoundaryConditions.WeatherData.ReaderTMY3 weaDat( pAtmSou=Annex60.BoundaryConditions.Types.DataSource.Parameter, TDryBul=TOut_nominal, filNam="modelica://Annex60/Resources/weatherdata/USA_IL_Chicago-OHare.Intl.AP.725300_TMY3.mos", TDryBulSou=Annex60.BoundaryConditions.Types.DataSource.File, computeWetBulbTemperature=false) "Weather data reader"; BoundaryConditions.WeatherData.Bus weaBus "Weather data bus"; Modelica.Blocks.Interfaces.RealOutput TOut(final unit="K") "Outdoor temperature"; Modelica.Blocks.Interfaces.RealOutput TRad1(final unit="K") "Radiative temperature"; Modelica.Blocks.Interfaces.RealOutput TRad2(final unit="K") "Radiative temperature"; Modelica.Thermal.HeatTransfer.Sources.PrescribedTemperature TAirOut "Outside air temperature"; Modelica.Thermal.HeatTransfer.Components.ThermalConductor theCon1(G=10000/30) "Thermal conductance with the ambient"; Modelica.Thermal.HeatTransfer.Sources.FixedHeatFlow preHea1(Q_flow= QRooInt_flow) "Prescribed heat flow for internal gains"; MixingVolumes.MixingVolume vol1( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, V=V, mSenFac=3, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, nPorts=3) "Room volume"; Modelica.Thermal.HeatTransfer.Components.ThermalConductor theCon2( G=10000/30) "Thermal conductance with the ambient"; Modelica.Thermal.HeatTransfer.Sources.FixedHeatFlow preHea2(Q_flow= QRooInt_flow) "Prescribed heat flow for internal gains"; MixingVolumes.MixingVolume vol2( redeclare package Medium = MediumA, m_flow_nominal=mA_flow_nominal, V=V, mSenFac=3, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, nPorts=3) "Room volume"; Sensors.MassFlowRate senMasFlo[nPorts](redeclare final package Medium = MediumA) "Mass flow rate sensor to connect thermal adapter with thermal zone."; Sensors.MassFlowRate senMasFlo1[nPorts]( redeclare final package Medium = MediumA) "Mass flow rate sensor to connect thermal adapter with thermal zone."; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor temSen1 "Temperature sensor (that approximates the radiative temperature by the air temperature)"; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor temSen2 "Temperature sensor (that approximates the radiative temperature by the air temperature)"; equation connect(weaDat.weaBus,weaBus); connect(theCon1.port_b, vol1.heatPort); connect(preHea1.port, vol1.heatPort); connect(TAirOut.T, weaBus.TDryBul); connect(TAirOut.port, theCon1.port_a); connect(TOut, weaBus.TDryBul); connect(theCon2.port_b, vol2.heatPort); connect(preHea2.port, vol2.heatPort); connect(TAirOut.port, theCon2.port_a); connect(vol1.heatPort, theZonAda[1].heaPorAir); connect(vol2.heatPort, theZonAda[2].heaPorAir); connect(theZonAda[2].ports, senMasFlo1.port_a); connect(senMasFlo.port_a, theZonAda[1].ports); connect(senMasFlo1.port_b, vol2.ports[1:3]); connect(senMasFlo.port_b, vol1.ports[1:3]); connect(temSen1.port, vol1.heatPort); connect(temSen2.port, vol2.heatPort); connect(temSen1.T, TRad1); connect(temSen2.T, TRad2); end ThermalZones;

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.TwoPortPassThrough

Declaration of an FMU that exports a block that simply passes all the inputs to the outputs

Annex60.Fluid.FMI.ExportContainers.Examples.FMUs.TwoPortPassThrough

Information

This example demonstrates how to export an FMU that simply passes all its inputs to its outputs. Such an FMU could for example be used in a block diagram as a place-holder for another FMU that provides an actual implementation of a component.

Extends from Annex60.Fluid.FMI.ExportContainers.PartialTwoPort (Partial block to be used as a container to export a thermofluid flow model with two ports).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	use_p_in	true	= true to use a pressure from connector, false to output Medium.p_default
Assumptions
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet
Outlet	outlet	Fluid outlet

Modelica definition

block TwoPortPassThrough "Declaration of an FMU that exports a block that simply passes all the inputs to the outputs" extends Annex60.Fluid.FMI.ExportContainers.PartialTwoPort( redeclare replaceable package Medium = Annex60.Media.Air); equation connect(inlet, outlet); end TwoPortPassThrough;

http://iea-annex60.org
