Annex60.Airflow.Multizone

IEA EBC Annex 60

Annex60.Airflow.Multizone

Package with models for multizone airflow and contaminant transport

Information

This package provides models to compute the airflow and contaminant transport between different rooms and between a room and the exterior environment. See the User's Guide for more information.

Extends from Modelica.Icons.VariantsPackage (Icon for package containing variants).

Package Content

Name	Description
UsersGuide	User's Guide
DoorDiscretizedOpen	Door model using discretization along height coordinate
DoorDiscretizedOperable	Door model using discretization along height coordinate
EffectiveAirLeakageArea	Effective air leakage area
MediumColumn	Vertical shaft with no friction and no storage of heat and mass
MediumColumnDynamic	Vertical shaft with no friction and storage of heat and mass
Orifice	Orifice
ZonalFlow_ACS	Zonal flow with input air change per second
ZonalFlow_m_flow	Zonal flow with input air change per second
Types	Package with type definitions
Examples	Collection of models that illustrate model use and test models
Validation	Collection of validation models
BaseClasses	Package with base classes for Annex60.Airflow.Multizone

Annex60.Airflow.Multizone.DoorDiscretizedOpen

Door model using discretization along height coordinate

Annex60.Airflow.Multizone.DoorDiscretizedOpen

Information

This model describes the bi-directional air flow through an open door.

To compute the bi-directional flow, the door is discretize along the height coordinate. An orifice equation is used to compute the flow for each compartment.

In this model, the door is always open. Use the model Buildings.Airflow.Multizone.DoorDiscretizedOperable for a door that can either be open or closed.

Extends from Annex60.Airflow.Multizone.BaseClasses.DoorDiscretized (Door model using discretization along height coordinate).

Parameters

Type	Name	Default	Description
Boolean	forceErrorControlOnFlow	true	Flag to force error control on m_flow. Set to true if interested in flow rate
replaceable package Medium		PartialMedium
Velocity	vZer	0.001	Minimum velocity to prevent zero flow. Recommended: 0.001 [m/s]
Integer	nCom	10	Number of compartments for the discretization
PressureDifference	dp_turbulent	0.01	Pressure difference where laminar and turbulent flow relation coincide. Recommended: 0.01 [Pa]
Geometry
Length	wOpe	0.9	Width of opening [m]
Length	hOpe	2.1	Height of opening [m]
Length	hA	2.7/2	Height of reference pressure zone A [m]
Length	hB	2.7/2	Height of reference pressure zone B [m]
Orifice characteristics
Real	CD	0.65	Discharge coefficient
Advanced
MassFlowRate	m1_flow_small	1E-4*abs(m1_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
MassFlowRate	m2_flow_small	1E-4*abs(m2_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
Diagnostics
Boolean	show_T	false	= true, if actual temperature at port is computed

Connectors

Type	Name	Description
FluidPort_a	port_a1	Fluid connector a1 (positive design flow direction is from port_a1 to port_b1)
FluidPort_b	port_b1	Fluid connector b1 (positive design flow direction is from port_a1 to port_b1)
FluidPort_a	port_a2	Fluid connector a2 (positive design flow direction is from port_a2 to port_b2)
FluidPort_b	port_b2	Fluid connector b2 (positive design flow direction is from port_a2 to port_b2)

Modelica definition

model DoorDiscretizedOpen "Door model using discretization along height coordinate" extends Annex60.Airflow.Multizone.BaseClasses.DoorDiscretized; protected constant Real mFixed = 0.5 "Fixed value for flow coefficient"; constant Real gamma(min=1) = 1.5 "Normalized flow rate where dphi(0)/dpi intersects phi(1)"; constant Real a = gamma "Polynomial coefficient for regularized implementation of flow resistance"; constant Real b = 1/8*mFixed^2 - 3*gamma - 3/2*mFixed + 35.0/8 "Polynomial coefficient for regularized implementation of flow resistance"; constant Real c = -1/4*mFixed^2 + 3*gamma + 5/2*mFixed - 21.0/4 "Polynomial coefficient for regularized implementation of flow resistance"; constant Real d = 1/8*mFixed^2 - gamma - mFixed + 15.0/8 "Polynomial coefficient for regularized implementation of flow resistance"; equation m=mFixed; A = wOpe*hOpe; kVal = CD*dA*sqrt(2/rho_default); // orifice equation for i in 1:nCom loop dV_flow[i] = Annex60.Airflow.Multizone.BaseClasses.powerLawFixedM( k=kVal, dp=dpAB[i], m=mFixed, a=a, b=b, c=c, d=d, dp_turbulent=dp_turbulent); end for; end DoorDiscretizedOpen;

Annex60.Airflow.Multizone.DoorDiscretizedOperable

Door model using discretization along height coordinate

Annex60.Airflow.Multizone.DoorDiscretizedOperable

Information

This model describes the bi-directional air flow through an open door.

To compute the bi-directional flow, the door is discretize along the height coordinate, and uses an orifice equation to compute the flow for each compartment.

The door can be either open or closed, depending on the input signal y. Set y=0 if the door is closed, and y=1 if the door is open. Use the model Annex60.Airflow.Multizone.DoorDiscretizedOpen for a door that is always closed.

Extends from Annex60.Airflow.Multizone.BaseClasses.DoorDiscretized (Door model using discretization along height coordinate).

Parameters

Type	Name	Default	Description
Boolean	forceErrorControlOnFlow	true	Flag to force error control on m_flow. Set to true if interested in flow rate
replaceable package Medium		PartialMedium
Velocity	vZer	0.001	Minimum velocity to prevent zero flow. Recommended: 0.001 [m/s]
Integer	nCom	10	Number of compartments for the discretization
PressureDifference	dp_turbulent	0.01	Pressure difference where laminar and turbulent flow relation coincide. Recommended: 0.01 [Pa]
Geometry
Length	wOpe	0.9	Width of opening [m]
Length	hOpe	2.1	Height of opening [m]
Length	hA	2.7/2	Height of reference pressure zone A [m]
Length	hB	2.7/2	Height of reference pressure zone B [m]
Orifice characteristics
Real	CD	0.65	Discharge coefficient
Closed aperture rating conditions
PressureDifference	dpCloRat	4	Pressure drop at rating condition [Pa]
Real	CDCloRat	1	Discharge coefficient
Closed aperture
Area	LClo		Effective leakage area [m2]
Real	CDClo	0.65	Discharge coefficient
Real	mClo	0.65	Flow exponent for crack
Open aperture
Real	CDOpe	0.65	Discharge coefficient
Real	mOpe	0.5	Flow exponent for door
Advanced
MassFlowRate	m1_flow_small	1E-4*abs(m1_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
MassFlowRate	m2_flow_small	1E-4*abs(m2_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
Diagnostics
Boolean	show_T	false	= true, if actual temperature at port is computed

Connectors

Type	Name	Description
FluidPort_a	port_a1	Fluid connector a1 (positive design flow direction is from port_a1 to port_b1)
FluidPort_b	port_b1	Fluid connector b1 (positive design flow direction is from port_a1 to port_b1)
FluidPort_a	port_a2	Fluid connector a2 (positive design flow direction is from port_a2 to port_b2)
FluidPort_b	port_b2	Fluid connector b2 (positive design flow direction is from port_a2 to port_b2)
input RealInput	y	Opening signal, 0=closed, 1=open [1]

Modelica definition

model DoorDiscretizedOperable "Door model using discretization along height coordinate" extends Annex60.Airflow.Multizone.BaseClasses.DoorDiscretized; parameter Modelica.SIunits.PressureDifference dpCloRat(min=0, displayUnit="Pa") = 4 "|Closed aperture rating conditions|Pressure drop at rating condition"; parameter Real CDCloRat(min=0, max=1)=1 "|Closed aperture rating conditions|Discharge coefficient"; parameter Modelica.SIunits.Area LClo(min=0) "|Closed aperture|Effective leakage area"; parameter Real CDOpe=0.65 "|Open aperture|Discharge coefficient"; parameter Real CDClo=0.65 "|Closed aperture|Discharge coefficient"; parameter Real mOpe = 0.5 "|Open aperture|Flow exponent for door"; parameter Real mClo= 0.65 "|Closed aperture|Flow exponent for crack"; Modelica.Blocks.Interfaces.RealInput y(min=0, max=1, unit="1") "Opening signal, 0=closed, 1=open"; protected parameter Modelica.SIunits.Area AOpe=wOpe*hOpe "Open aperture area"; parameter Modelica.SIunits.Area AClo(fixed=false) "Closed aperture area"; Real kOpe "Open aperture flow coefficient, k = V_flow/ dp^m"; Real kClo "Closed aperture flow coefficient, k = V_flow/ dp^m"; Real fraOpe "Fraction of aperture that is open"; initial equation AClo=CDClo/CDCloRat * LClo * dpCloRat^(0.5-mClo); equation fraOpe =y; kClo = CDClo * AClo/nCom * sqrt(2/rho_default); kOpe = CDOpe * AOpe/nCom * sqrt(2/rho_default); // flow exponent m = fraOpe*mOpe + (1-fraOpe)*mClo; // opening area A = fraOpe*AOpe + (1-fraOpe)*AClo; // friction coefficient for power law kVal = fraOpe*kOpe + (1-fraOpe)*kClo; // orifice equation for i in 1:nCom loop dV_flow[i] = Annex60.Airflow.Multizone.BaseClasses.powerLaw( k=kVal, dp=dpAB[i], m=m, dp_turbulent=dp_turbulent); end for; end DoorDiscretizedOperable;

Annex60.Airflow.Multizone.EffectiveAirLeakageArea

Effective air leakage area

Annex60.Airflow.Multizone.EffectiveAirLeakageArea

Information

This model describes the one-directional pressure driven air flow through a crack-like opening.

The opening is modeled as an orifice. The orifice area is parameterized by processing the effective air leakage area, the discharge coefficient and pressure drop at a reference condition. The effective air leakage area can be obtained, for example, from the ASHRAE fundamentals (ASHRAE, 1997, p. 25.18). In the ASHRAE fundamentals, the effective air leakage area is based on a reference pressure difference of 4 Pa and a discharge coefficient of 1. A similar model is also used in the CONTAM software (Dols and Walton, 2002). Dols and Walton (2002) recommend to use for the flow exponent m=0.6 to m=0.7 if the flow exponent is not reported with the test results.

References

ASHRAE, 1997. ASHRAE Fundamentals, American Society of Heating, Refrigeration and Air-Conditioning Engineers, 1997.
Dols and Walton, 2002. W. Stuart Dols and George N. Walton, CONTAMW 2.0 User Manual, Multizone Airflow and Contaminant Transport Analysis Software, Building and Fire Research Laboratory, National Institute of Standards and Technology, Tech. Report NISTIR 6921, November, 2002.

Extends from Annex60.Airflow.Multizone.Orifice (Orifice).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	forceErrorControlOnFlow	true	Flag to force error control on m_flow. Set to true if interested in flow rate
Real	m	0.65	Flow exponent, m=0.5 for turbulent, m=1 for laminar
Boolean	useDefaultProperties	true	Set to false to use density and viscosity based on actual medium state, rather than using default values
PressureDifference	dp_turbulent	0.1	Pressure difference where laminar and turbulent flow relation coincide. Recommended = 0.1 [Pa]
Length	lWet	sqrt(A)	Wetted perimeter used for Reynolds number calculation [m]
Area	L		Effective leakage area [m2]
Orifice characteristics
Area	A	CD/CDRatLdpRat^(0.5 - m)	Area of orifice [m2]
Real	CD	0.65	Discharge coefficient
Rating conditions
PressureDifference	dpRat	4	Pressure drop at rating condition [Pa]
Real	CDRat	1	Discharge coefficient
Assumptions
Boolean	allowFlowReversal	true	= false to simplify equations, assuming, but not enforcing, no flow reversal
Advanced
MassFlowRate	m_flow_small	1E-4*abs(m_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
Boolean	homotopyInitialization	true	= true, use homotopy method
Diagnostics
Boolean	show_T	false	= true, if actual temperature at port is computed

Connectors

Type	Name	Description
FluidPort_a	port_a	Fluid connector a (positive design flow direction is from port_a to port_b)
FluidPort_b	port_b	Fluid connector b (positive design flow direction is from port_a to port_b)

Modelica definition

model EffectiveAirLeakageArea "Effective air leakage area" extends Annex60.Airflow.Multizone.Orifice( m=0.65, final A=CD/CDRat * L * dpRat^(0.5-m)); parameter Modelica.SIunits.PressureDifference dpRat(min=0, displayUnit="Pa") = 4 "|Rating conditions|Pressure drop at rating condition"; parameter Real CDRat(min=0, max=1)=1 "|Rating conditions|Discharge coefficient"; parameter Modelica.SIunits.Area L(min=0) "Effective leakage area"; end EffectiveAirLeakageArea;

Annex60.Airflow.Multizone.MediumColumn

Vertical shaft with no friction and no storage of heat and mass

Annex60.Airflow.Multizone.MediumColumn

Information

This model describes the pressure difference of a vertical medium column. It can be used to model the pressure difference caused by stack effect.

The model can be used with the following three configurations, which are controlled by the setting of the parameter densitySelection:

top: Use this setting to use the density from the volume that is connected to port_a.
bottom: Use this setting to use the density from the volume that is connected to port_b.
actual: Use this setting to use the density based on the actual flow direction.

The settings top and bottom should be used when rooms or different floors of a building are connected since multizone airflow models assume that each floor is completely mixed. For these two seetings, this model will compute the pressure between the center of the room and an opening that is at height h relative to the center of the room. The setting actual may be used to model a chimney in which a column of air will change its density based on the flow direction.

In this model, the parameter h must always be positive, and the port port_a must be at the top of the column.

For a steady-state model, use Annex60.Airflow.Multizone.MediumColumnDynamic instead of this model.

Parameters

Type	Name	Default	Description
replaceable package Medium		Modelica.Media.Interfaces.Pa...	Medium in the component
Length	h	3	Height of shaft [m]
densitySelection	densitySelection		Select how to pick density
Assumptions
Boolean	allowFlowReversal	true	= false to simplify equations, assuming, but not enforcing, no flow reversal

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
FluidPort_a	port_a	Fluid connector a (positive design flow direction is from port_a to port_b)
FluidPort_b	port_b	Fluid connector b (positive design flow direction is from port_a to port_b)

Modelica definition

model MediumColumn "Vertical shaft with no friction and no storage of heat and mass" import Modelica.Constants; replaceable package Medium = Modelica.Media.Interfaces.PartialMedium "Medium in the component"; parameter Modelica.SIunits.Length h(min=0) = 3 "Height of shaft"; parameter Annex60.Airflow.Multizone.Types.densitySelection densitySelection "Select how to pick density"; parameter Boolean allowFlowReversal=true "= false to simplify equations, assuming, but not enforcing, no flow reversal"; Modelica.Fluid.Interfaces.FluidPort_a port_a( redeclare package Medium = Medium, m_flow(min=if allowFlowReversal then -Constants.inf else 0), p(start=Medium.p_default)) "Fluid connector a (positive design flow direction is from port_a to port_b)"; Modelica.Fluid.Interfaces.FluidPort_b port_b( redeclare package Medium = Medium, m_flow(max=if allowFlowReversal then +Constants.inf else 0), p(start=Medium.p_default)) "Fluid connector b (positive design flow direction is from port_a to port_b)"; Modelica.SIunits.VolumeFlowRate V_flow "Volume flow rate at inflowing port (positive when flow from port_a to port_b)"; Modelica.SIunits.MassFlowRate m_flow "Mass flow rate from port_a to port_b (m_flow > 0 is design flow direction)"; Modelica.SIunits.PressureDifference dp(displayUnit="Pa") "Pressure difference between port_a and port_b"; Modelica.SIunits.Density rho "Density in medium column"; protected Medium.ThermodynamicState sta_a=Medium.setState_phX( port_a.p, actualStream(port_a.h_outflow), actualStream(port_a.Xi_outflow)) "Medium properties in port_a"; Medium.MassFraction Xi[Medium.nXi] "Mass fraction used to compute density"; initial equation // The next assert tests for all allowed values of the enumeration. // Testing against densitySelection > 0 gives an error in OpenModelica as enumerations start with 1. assert(densitySelection == Annex60.Airflow.Multizone.Types.densitySelection.fromTop or densitySelection == Annex60.Airflow.Multizone.Types.densitySelection.fromBottom or densitySelection == Annex60.Airflow.Multizone.Types.densitySelection.actual, "You need to set the parameter \"densitySelection\" for the model MediumColumn."); equation // Design direction of mass flow rate m_flow = port_a.m_flow; // Pressure difference between ports // Xi is computed first as it is used in two expression, and in one // of them only one component is used. // We test for Medium.nXi == 0 as Modelica.Media.Air.SimpleAir has no // moisture and hence Xi[1] is an illegal statement. // We first compute temperature and then invoke a density function that // takes temperature as an argument. Simply calling a density function // of a medium that takes enthalpy as an argument would be dangerous // as different media can have different datum for the enthalpy. if (densitySelection == Annex60.Airflow.Multizone.Types.densitySelection.fromTop) then Xi = inStream(port_a.Xi_outflow); rho = Annex60.Utilities.Psychrometrics.Functions.density_pTX( p=port_a.p, T=Medium.temperature(Medium.setState_phX(port_a.p, inStream(port_a.h_outflow), Xi)), X_w=if Medium.nXi == 0 then 0 else Xi[1]); elseif (densitySelection == Annex60.Airflow.Multizone.Types.densitySelection.fromBottom) then Xi = inStream(port_b.Xi_outflow); rho = Annex60.Utilities.Psychrometrics.Functions.density_pTX( p=port_b.p, T=Medium.temperature(Medium.setState_phX(port_b.p, inStream(port_b.h_outflow), Xi)), X_w=if Medium.nXi == 0 then 0 else Xi[1]); else Xi = actualStream(port_a.Xi_outflow); rho = Annex60.Utilities.Psychrometrics.Functions.density_pTX( p=port_a.p, T=Medium.temperature(Medium.setState_phX(port_a.p, actualStream(port_a.h_outflow), Xi)), X_w=if Medium.nXi == 0 then 0 else Xi[1]); end if; V_flow = m_flow/Medium.density(sta_a); dp = port_a.p - port_b.p; dp = -h*rho*Modelica.Constants.g_n; // Isenthalpic state transformation (no storage and no loss of energy) port_a.h_outflow = inStream(port_b.h_outflow); port_b.h_outflow = inStream(port_a.h_outflow); // Mass balance (no storage) port_a.m_flow + port_b.m_flow = 0; // Transport of substances port_a.Xi_outflow = inStream(port_b.Xi_outflow); port_b.Xi_outflow = inStream(port_a.Xi_outflow); port_a.C_outflow = inStream(port_b.C_outflow); port_b.C_outflow = inStream(port_a.C_outflow); end MediumColumn;

Annex60.Airflow.Multizone.MediumColumnDynamic

Vertical shaft with no friction and storage of heat and mass

Annex60.Airflow.Multizone.MediumColumnDynamic

Information

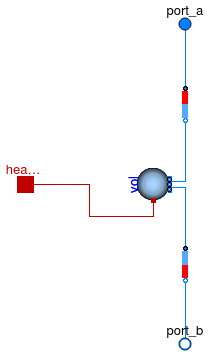

This model contains a completely mixed fluid volume and models that take into account the pressure difference of a medium column that is at the same temperature as the fluid volume. It can be used to model the pressure difference caused by a stack effect.

Set the parameter use_HeatTransfer=true to expose a heatPort. This heatPort can be used to add or subtract heat from the volume. This allows, for example, to use this model in conjunction with a model for heat transfer through walls to model a solar chimney that stores heat.

For a steady-state model, use Annex60.Airflow.Multizone.MediumColumn instead of this model.

In this model, the parameter h must always be positive, and the port port_a must be at the top of the column.

Extends from Annex60.Fluid.Interfaces.LumpedVolumeDeclarations (Declarations for lumped volumes).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Length	h	3	Height of shaft [m]
Volume	V		Volume in medium shaft [m3]
Nominal condition, used only for steady-state model
MassFlowRate	m_flow_nominal		Nominal mass flow rate [kg/s]
Dynamics
Equations
Dynamics	energyDynamics	Modelica.Fluid.Types.Dynamic...	Type of energy balance: dynamic (3 initialization options) or steady state
Dynamics	massDynamics	energyDynamics	Type of mass balance: dynamic (3 initialization options) or steady state
Real	mSenFac	1	Factor for scaling the sensible thermal mass of the volume
Initialization
AbsolutePressure	p_start	Medium.p_default	Start value of pressure [Pa]
Temperature	T_start	Medium.T_default	Start value of temperature [K]
MassFraction	X_start[Medium.nX]	Medium.X_default	Start value of mass fractions m_i/m [kg/kg]
ExtraProperty	C_start[Medium.nC]	fill(0, Medium.nC)	Start value of trace substances
ExtraProperty	C_nominal[Medium.nC]	fill(1E-2, Medium.nC)	Nominal value of trace substances. (Set to typical order of magnitude.)
Assumptions
Boolean	allowFlowReversal	true	= false to simplify equations, assuming, but not enforcing, no flow reversal
Heat transfer
Boolean	use_HeatTransfer	false	= true to use the HeatTransfer model
replaceable model HeatTransfer		Modelica.Fluid.Vessels.BaseC...	Wall heat transfer

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
FluidPort_a	port_a	Fluid connector a (positive design flow direction is from port_a to port_b)
FluidPort_b	port_b	Fluid connector b (positive design flow direction is from port_a to port_b)
HeatPort_a	heatPort	Heat port to exchange energy with the fluid volume
Assumptions
Heat transfer
replaceable model HeatTransfer		Wall heat transfer

Modelica definition

model MediumColumnDynamic "Vertical shaft with no friction and storage of heat and mass" extends Annex60.Fluid.Interfaces.LumpedVolumeDeclarations; import Modelica.Constants; replaceable package Medium = Modelica.Media.Interfaces.PartialMedium "Medium in the component"; parameter Modelica.SIunits.Length h(min=0) = 3 "Height of shaft"; parameter Boolean allowFlowReversal=true "= false to simplify equations, assuming, but not enforcing, no flow reversal"; parameter Modelica.SIunits.MassFlowRate m_flow_nominal(min=0) "Nominal mass flow rate"; Modelica.Fluid.Interfaces.FluidPort_a port_a( redeclare final package Medium = Medium, m_flow(min=if allowFlowReversal then -Constants.inf else 0), p(start=Medium.p_default)) "Fluid connector a (positive design flow direction is from port_a to port_b)"; Modelica.Fluid.Interfaces.FluidPort_b port_b( redeclare final package Medium = Medium, m_flow(max=if allowFlowReversal then +Constants.inf else 0), p(start=Medium.p_default)) "Fluid connector b (positive design flow direction is from port_a to port_b)"; // m_flow_nominal is not used by vol, since this component // can only be configured as a dynamic model. Annex60.Fluid.MixingVolumes.MixingVolume vol( final nPorts=2, redeclare final package Medium = Medium, final m_flow_nominal=m_flow_nominal, final V=V, final energyDynamics=energyDynamics, final massDynamics=massDynamics, final p_start=p_start, final T_start=T_start, final X_start=X_start, final C_start=C_start) "Air volume in the shaft"; MediumColumn colTop( redeclare final package Medium = Medium, final densitySelection=Annex60.Airflow.Multizone.Types.densitySelection.fromBottom, h=h/2, final allowFlowReversal=allowFlowReversal) "Medium column that connects to top port"; MediumColumn colBot( redeclare final package Medium = Medium, final densitySelection=Annex60.Airflow.Multizone.Types.densitySelection.fromTop, h=h/2, final allowFlowReversal=allowFlowReversal) "Medium colum that connects to bottom port"; parameter Modelica.SIunits.Volume V "Volume in medium shaft"; // Heat transfer through boundary parameter Boolean use_HeatTransfer = false "= true to use the HeatTransfer model"; replaceable model HeatTransfer = Modelica.Fluid.Vessels.BaseClasses.HeatTransfer.IdealHeatTransfer constrainedby Modelica.Fluid.Vessels.BaseClasses.HeatTransfer.PartialVesselHeatTransfer "Wall heat transfer"; Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a heatPort if use_HeatTransfer "Heat port to exchange energy with the fluid volume"; equation connect(colBot.port_a, vol.ports[1]); connect(vol.ports[2], colTop.port_b); connect(colTop.port_a, port_a); connect(colBot.port_b, port_b); connect(heatPort, vol.heatPort); end MediumColumnDynamic;

Annex60.Airflow.Multizone.Orifice

Orifice

Annex60.Airflow.Multizone.Orifice

Information

This model describes the mass flow rate and pressure difference relation of an orifice in the form

    V_flow = k * dp^m,

where k is a variable and m a parameter. For turbulent flow, set m=1/2 and for laminar flow, set m=1. Large openings are characterized by values close to 0.5, while values near 0.65 have been found for small crack-like openings (Dols and Walton, 2002).

References

W. Stuart Dols and George N. Walton, CONTAMW 2.0 User Manual, Multizone Airflow and Contaminant Transport Analysis Software, Building and Fire Research Laboratory, National Institute of Standards and Technology, Tech. Report NISTIR 6921, November, 2002.

Extends from Annex60.Airflow.Multizone.BaseClasses.PowerLawResistance (Flow resistance that uses the power law).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium	Medium in the component
Boolean	forceErrorControlOnFlow	true	Flag to force error control on m_flow. Set to true if interested in flow rate
Real	m	0.5	Flow exponent, m=0.5 for turbulent, m=1 for laminar
Boolean	useDefaultProperties	true	Set to false to use density and viscosity based on actual medium state, rather than using default values
PressureDifference	dp_turbulent	0.1	Pressure difference where laminar and turbulent flow relation coincide. Recommended = 0.1 [Pa]
Length	lWet	sqrt(A)	Wetted perimeter used for Reynolds number calculation [m]
Orifice characteristics
Area	A		Area of orifice [m2]
Real	CD	0.65	Discharge coefficient
Assumptions
Boolean	allowFlowReversal	true	= false to simplify equations, assuming, but not enforcing, no flow reversal
Advanced
MassFlowRate	m_flow_small	1E-4*abs(m_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
Boolean	homotopyInitialization	true	= true, use homotopy method
Diagnostics
Boolean	show_T	false	= true, if actual temperature at port is computed

Connectors

Type	Name	Description
FluidPort_a	port_a	Fluid connector a (positive design flow direction is from port_a to port_b)
FluidPort_b	port_b	Fluid connector b (positive design flow direction is from port_a to port_b)

Modelica definition

model Orifice "Orifice" extends Annex60.Airflow.Multizone.BaseClasses.PowerLawResistance(m=0.5, k=CD* A*sqrt(2.0/rho_default)); parameter Real CD=0.65 "|Orifice characteristics|Discharge coefficient"; end Orifice;

Annex60.Airflow.Multizone.ZonalFlow_ACS

Zonal flow with input air change per second

Annex60.Airflow.Multizone.ZonalFlow_ACS

Information

This model computes the air exchange between volumes.

Input is the air change per seconds. The volume flow rate is computed as

  V_flow = ACS * V

where ACS is an input and the volume V is a parameter.

Extends from Annex60.Airflow.Multizone.BaseClasses.ZonalFlow (Flow across zonal boundaries of a room).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium
Boolean	useDefaultProperties	false	Set to true to use constant density
Volume	V		Volume of room [m3]
Advanced
MassFlowRate	m1_flow_small	1E-4*abs(m1_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
MassFlowRate	m2_flow_small	1E-4*abs(m2_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
Diagnostics
Boolean	show_T	false	= true, if actual temperature at port is computed

Connectors

Type	Name	Description
FluidPort_a	port_a1	Fluid connector a1 (positive design flow direction is from port_a1 to port_b1)
FluidPort_b	port_b1	Fluid connector b1 (positive design flow direction is from port_a1 to port_b1)
FluidPort_a	port_a2	Fluid connector a2 (positive design flow direction is from port_a2 to port_b2)
FluidPort_b	port_b2	Fluid connector b2 (positive design flow direction is from port_a2 to port_b2)
input RealInput	ACS	Air change per seconds, relative to the smaller of the two volumes

Modelica definition

model ZonalFlow_ACS "Zonal flow with input air change per second" extends Annex60.Airflow.Multizone.BaseClasses.ZonalFlow; parameter Boolean useDefaultProperties = false "Set to true to use constant density"; parameter Modelica.SIunits.Volume V "Volume of room"; Modelica.Blocks.Interfaces.RealInput ACS "Air change per seconds, relative to the smaller of the two volumes"; protected Modelica.SIunits.VolumeFlowRate V_flow "Volume flow rate at standard pressure"; Modelica.SIunits.MassFlowRate m_flow "Mass flow rate"; parameter Medium.ThermodynamicState sta_default = Medium.setState_pTX(T=Medium.T_default, p=Medium.p_default, X=Medium.X_default); parameter Modelica.SIunits.Density rho_default=Medium.density(sta_default) "Density, used to compute fluid volume"; Medium.ThermodynamicState sta_a1_inflow= Medium1.setState_phX(port_a1.p, port_b1.h_outflow, port_b1.Xi_outflow) "Medium properties in port_a1"; Medium.ThermodynamicState sta_a2_inflow= Medium1.setState_phX(port_a2.p, port_b2.h_outflow, port_b2.Xi_outflow) "Medium properties in port_a2"; equation when useDefaultProperties and initial() then assert( abs(1-rho_default/((Medium.density(sta_a1_inflow) + Medium.density(sta_a2_inflow))/2)) < 0.2, "Wrong density. Densities need to match."); // The next three lines have been removed as they cause // a compilation error in OpenModelica. // + "\n Medium.density(sta_a1) = " + String(Medium.density(sta_a1_inflow)) // + "\n Medium.density(sta_a2) = " + String(Medium.density(sta_a2_inflow)) // + "\n rho_nominal = " + String(rho_default)); end when; V_flow = V * ACS; m_flow / V_flow = if useDefaultProperties then rho_default else (Medium.density(sta_a1_inflow) + Medium.density(sta_a2_inflow))/2; // assign variable in base class port_a1.m_flow = m_flow; port_a2.m_flow = m_flow; end ZonalFlow_ACS;

Annex60.Airflow.Multizone.ZonalFlow_m_flow

Zonal flow with input air change per second

Annex60.Airflow.Multizone.ZonalFlow_m_flow

Information

This model computes the air exchange between volumes.

Input is the mass flow rate from A to B and from B to A.

Extends from Annex60.Airflow.Multizone.BaseClasses.ZonalFlow (Flow across zonal boundaries of a room).

Parameters

Type	Name	Default	Description
replaceable package Medium		PartialMedium
Advanced
MassFlowRate	m1_flow_small	1E-4*abs(m1_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
MassFlowRate	m2_flow_small	1E-4*abs(m2_flow_nominal)	Small mass flow rate for regularization of zero flow [kg/s]
Diagnostics
Boolean	show_T	false	= true, if actual temperature at port is computed

Connectors

Type	Name	Description
FluidPort_a	port_a1	Fluid connector a1 (positive design flow direction is from port_a1 to port_b1)
FluidPort_b	port_b1	Fluid connector b1 (positive design flow direction is from port_a1 to port_b1)
FluidPort_a	port_a2	Fluid connector a2 (positive design flow direction is from port_a2 to port_b2)
FluidPort_b	port_b2	Fluid connector b2 (positive design flow direction is from port_a2 to port_b2)
input RealInput	mAB_flow	Mass flow rate from A to B
input RealInput	mBA_flow	Mass flow rate from B to A

Modelica definition

model ZonalFlow_m_flow "Zonal flow with input air change per second" extends Annex60.Airflow.Multizone.BaseClasses.ZonalFlow; Modelica.Blocks.Interfaces.RealInput mAB_flow "Mass flow rate from A to B"; Modelica.Blocks.Interfaces.RealInput mBA_flow "Mass flow rate from B to A"; equation port_a1.m_flow = mAB_flow; port_a2.m_flow = mBA_flow; end ZonalFlow_m_flow;

http://iea-annex60.org
